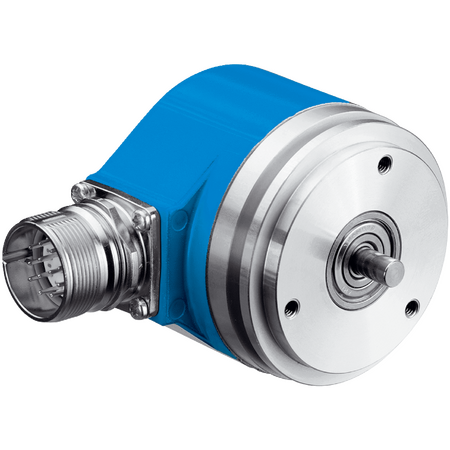

ARS60-F1A00360 | Absolute encoders

BRAND: SICK
SKU: 1031558
$2,339.40 List price: $2,940.40
+ −
30 Days Return Electricians Unlock Trade Access

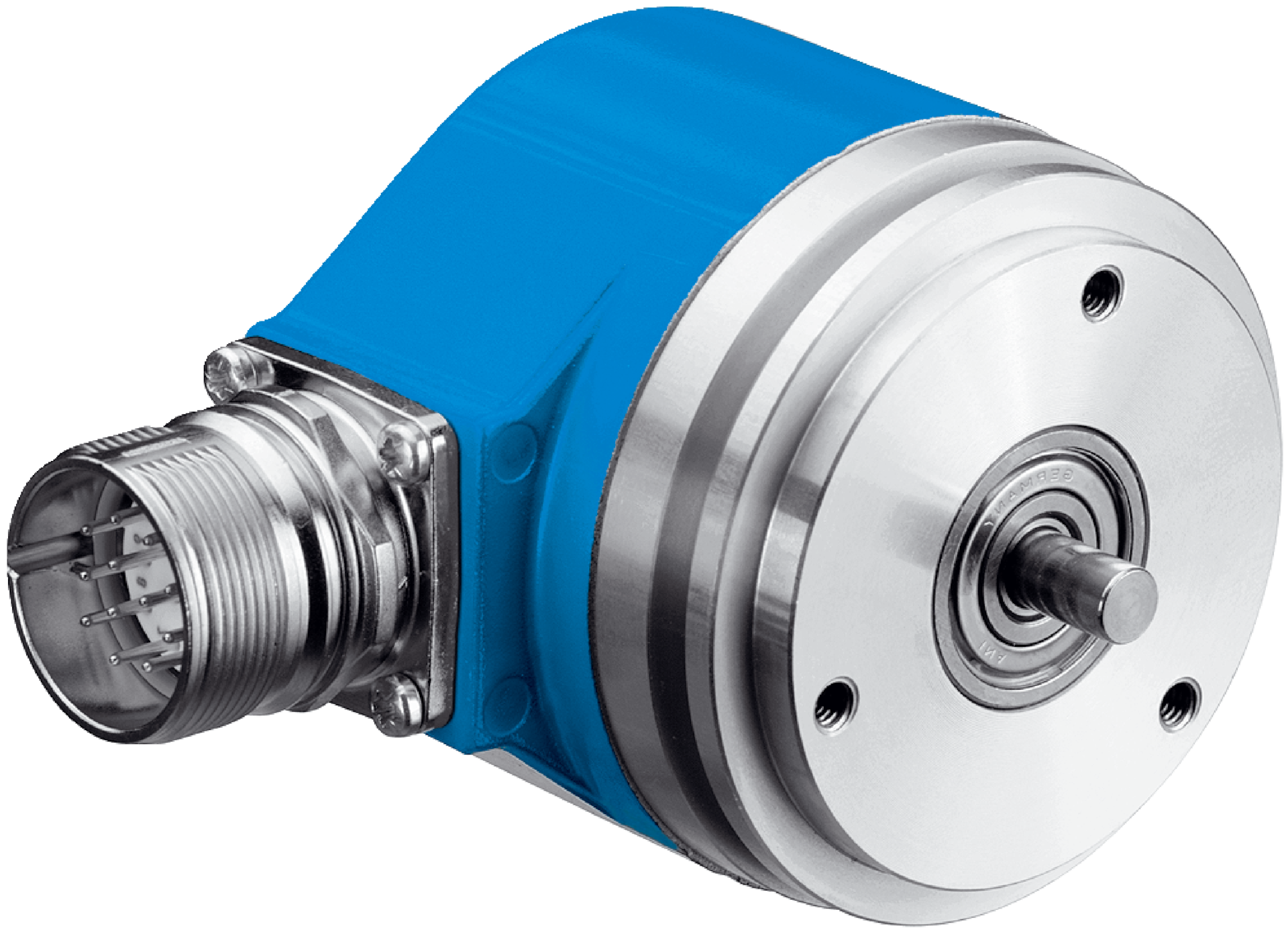

The SICK ARS60-F1A00360 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.

Product Name/Title: ARS60-F1A00360 | Absolute encoders

Brand: SICK

SKU: 1031558

Alternatively Known As: Rotary encoder, Absolute rotary encoder, Position encoder, SICK ARS60 encoder

Technical Specifications
  • Number of steps per revolution: 360
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Code type: Gray code
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Shaft diameter: 6 mm with flat
  • Shaft length: 10 mm
  • Start up torque: Typically 0.25 Ncm
  • Operating torque: Typically 0.2 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Enclosure rating: IP65
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 360 steps per revolution
  • Solid shaft with servo flange design
  • Robust aluminum die cast housing
  • IP65 rated enclosure for protection against dust and water
  • Low start-up and operating torque
  • High operating speed up to 10,000 min⁻¹ without shaft seal
  • Excellent repeatability with standard deviation of 0.005°
  • Parallel data communication interface with Gray code
  • Wide operating temperature range from -20°C to +85°C
  • Certified with multiple international conformity declarations
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Machine tool and conveyor systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK ARS60-F1A00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
