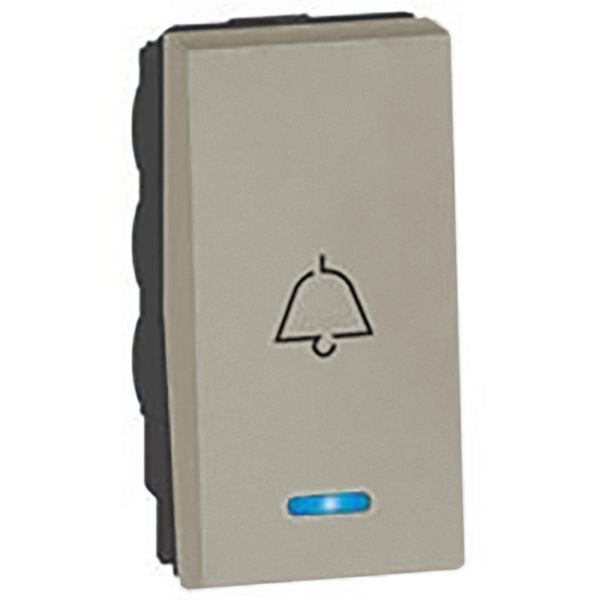

Arteor™ 1-Way Push-Button | Locator & Bell Symbol | IP40 Rated | Champagne Finish | @EA of 1 | by Legrand
The Arteor™ 1-way push-button with locator and bell symbol is perfect for residential and commercial electrical switching applications. Featuring a blue LED for easy location, this push-button is made from halogen-free thermoplastic and offers an IP40 protection rating. Ideal for doorbell systems and home automation, it ensures reliable performance with a rated current of 6 A at 250 V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button | Locator & Bell Symbol | IP40 Rated | Champagne Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573041
Alternatively Known As: Bell push button switch, 1 module push button, LED push button switch, doorbell switch, Arteor push button
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Number of poles: 2
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Material: Halogen free thermoplastic
- Protection rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Built-in depth: 28.5 mm
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button with locator and bell symbol
- Equipped with blue LED for easy location
- Rated current 6 A at 250 V AC
- Screwed terminal connection
- Modular device for domestic switching
- Halogen free thermoplastic material
- IP40 protection rating and IK04 impact resistance
- Matt lacquered titanium color finish
- Snap fastening for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Doorbell systems, home automation
- Commercial: Office buildings, hotels, public buildings
- General: Indoor electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic housing extends product life
- Energy-efficient LED locator reduces power consumption
Warranty Information
Legrand offers a standard 3-year warranty covering manufacturing defects and workmanship.
Available Now
The Legrand Arteor 1-way push-button with locator and bell symbol in champagne is available for immediate purchase, ideal for residential and commercial electrical switching applications.
