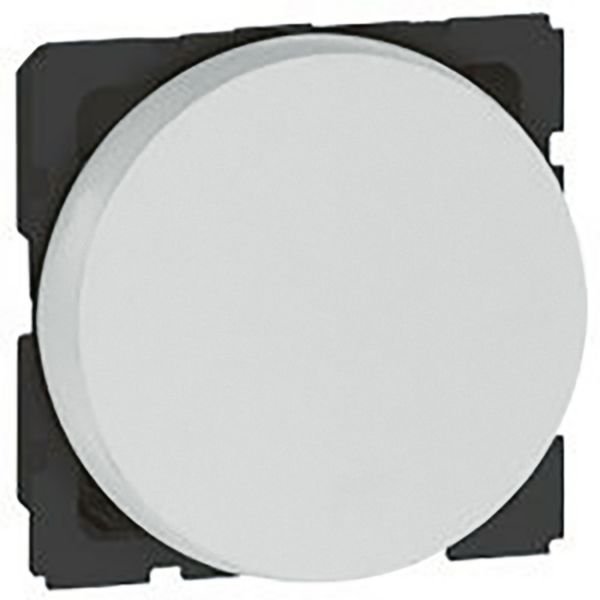

Arteor™ 2-Way Push-Button Switch | 2 Round Modules | IP40 Rated | Matt Aluminium Finish | @EA of 1 | by Legrand
The Arteor™ 2-way push-button switch features two round modules, designed for seamless electrical control in residential and commercial settings. With a rated current of 6A and a nominal voltage of 250V AC, this flush-mounted switch ensures reliable performance. Its IP40 protection rating and durable halogen-free thermoplastic construction make it ideal for various applications, from home lighting to office electrical switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button Switch | 2 Round Modules | IP40 Rated | Matt Aluminium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573059
Alternatively Known As: 2-way push button switch, Arteor push button, Legrand 2 module switch, round module push button
Technical Specifications
- Number of modules: 2
- Number of poles: 4
- Number of contacts normally closed: 2
- Number of contacts normally open: 2
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Cable section: 4-4 mm²
- Material: Halogen free thermoplastic
- Surface finish: Matt aluminium
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button switch with 2 round modules
- Rated current 6A, nominal voltage 250V AC
- Flush-mounted with snap fastening
- Screwed terminal connection
- IP40 protection rating and IK04 impact resistance
- Halogen free thermoplastic material with matt aluminium finish
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Residential: Home lighting and electrical control
- Commercial: Office and retail electrical switching
- Industrial: Control panels and modular electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction for long product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button 2 round modules in Soft Aluminium is available for immediate purchase, ideal for residential and commercial electrical switching applications.
