Trade Discount 20%

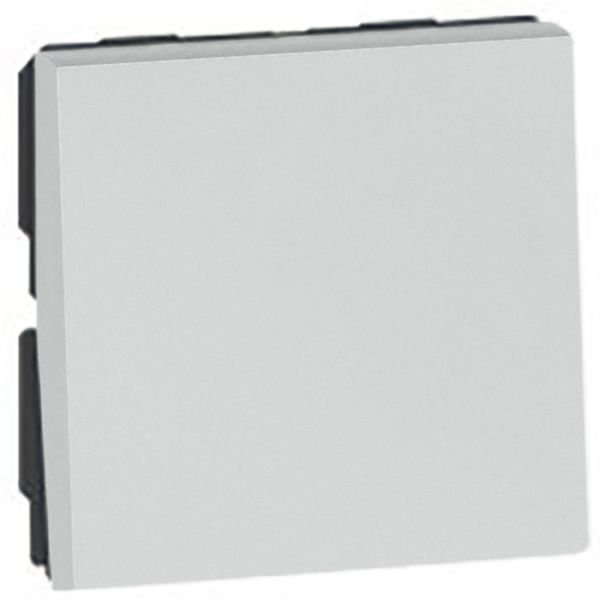

Arteor™ 2-Way Push-Button Switch | Soft Aluminium Finish | 2 Modules | IP40 Rated | @EA of 1 | by Legrand
The Arteor™ 2-way push-button switch is designed for seamless control of lighting circuits in residential and commercial settings. Featuring a sleek soft aluminium finish and a modular design, it ensures compatibility with standard mounting frames. With a rated current of 6A at 250V AC and an IP40 protection rating, this switch is built for durability and reliability, making it an ideal choice for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button Switch | Soft Aluminium Finish | 2 Modules | IP40 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573044
Alternatively Known As: 2-way light switch, push button switch, modular push-button, Arteor switch
Technical Specifications
- Number of modules: 2
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Number of poles: 4
- Number of normally closed contacts: 2
- Number of normally open contacts: 2
- Mounting method: Module frame with snap fastening
- Material: Halogen free thermoplastic
- Protection rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Connection type: Screwed terminal
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button switch for controlling lighting circuits
- Square design with soft aluminium matt finish
- Modular device compatible with standard mounting frames
- Rated current 6A at 250V AC
- Screwed terminal connection for secure wiring
- Halogen free thermoplastic material
- IP40 protection rating and IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential: Control lighting circuits in homes
- Commercial: Office and retail lighting control
- Industrial: Suitable for modular electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button 2 modules in soft aluminium is available for immediate purchase, ideal for residential and commercial lighting control applications.
