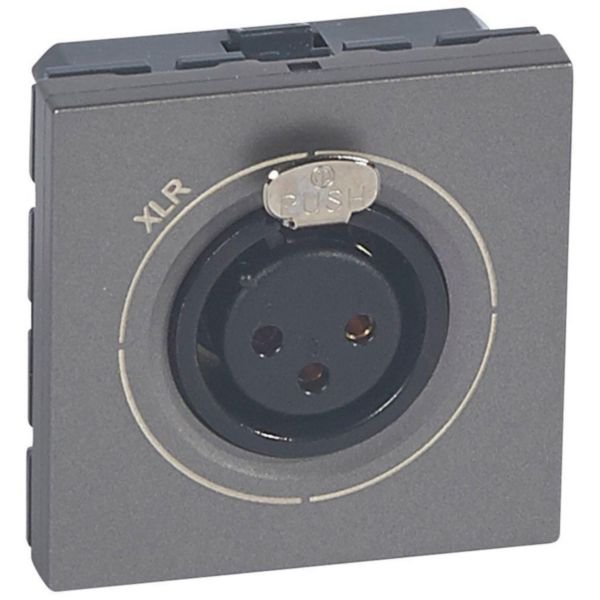

Arteor™ Female XLR Connector | Surface Mounted | IP40 Rated | Matt Grey | @EA of 1 | by Legrand
The Arteor™ Female XLR Connector is designed for seamless audio and video equipment connections, featuring a surface-mounted installation and IP40 rating for protection against solid objects. Ideal for professional sound systems and broadcast studios, this durable connector is made from matt grey thermoplastic, ensuring longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Female XLR Connector | Surface Mounted | IP40 Rated | Matt Grey | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572783
Alternatively Known As: Female XLR Socket, XLR Female Connector, Audio XLR Socket, Legrand XLR Socket
Technical Specifications
- Assembly arrangement: Basic element with central cover plate
- Utilization: XLR female connector
- Support ring: No
- Dust cover: No
- Hinged lid: No
- Outlet direction: Straight
- Imprintable label: Without indication field
- Mounting method: Surface mounted
- Material: Thermoplastic plastic
- Surface finishing: Matt
- Colour: Grey
- Type of fastening: Engage (snap)
- Number of modules: 2
- Suitable for number of connectors: 1
- Strain relief: No
- Shielded buses: No
- Shielded housing: No
- Luster terminal: No
- With lighting: No
- Degree of protection (IP): IP40
- Degree of impact strength (IK): IK04
- Device width: 45 mm
- Device height: 45 mm
- Built-in depth: 34 mm
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Dimensions (H x L x W): 45mm x 50mm x 45mm
- Weight: 0.1 kg
Key Features
- Surface mounted installation
- Female XLR connector type
- Matt grey thermoplastic material
- IP40 rated for protection against solid objects
- IK04 impact resistance
- 2 module size with snap engage fastening
- Operating temperature range from -5°C to 50°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Audio and video equipment connections
- Professional sound systems
- Broadcast and recording studios
- Home and building wiring devices requiring XLR female connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable thermoplastic housing reduces need for frequent replacements
- Surface mount design minimizes installation waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ Female XLR 2m Magnesium socket is available for immediate purchase, ideal for professional audio and building wiring applications.
