Arteor MyHOME 230V a.c. 2 DIN Module Power Supply | 27 Vdc Output | LED Indicator | @EA of 1 | by Legrand

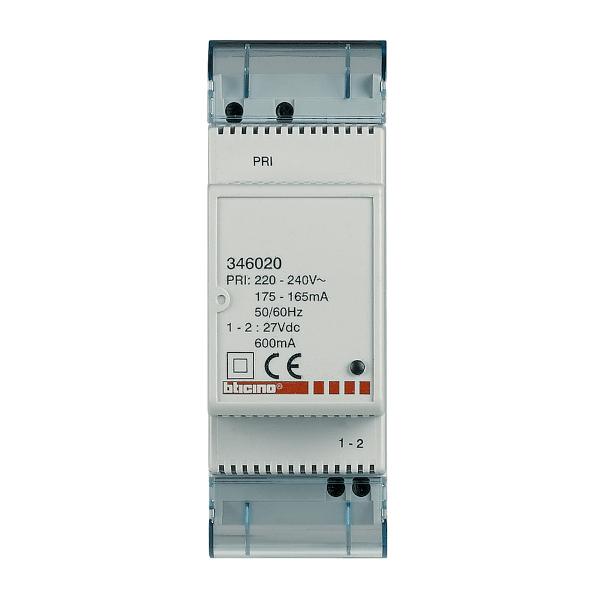

The Arteor MyHOME 230V a.c. 2 DIN Module Power Supply is designed for reliable power supply to entrance panels and internal units. With a continuous low voltage output of 27 Vdc and a maximum current of 600 mA, it ensures safe operation with SELV double insulation. Ideal for door entry and automation applications, this compact power supply is perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor MyHOME 230V a.c. 2 DIN Module Power Supply | 27 Vdc Output | LED Indicator | @EA of 1 | by Legrand
Brand: Legrand
SKU: 346020
Alternatively Known As: MyHOME Power Supply 230V, 2 DIN Module Power Supply, Legrand Door Entry Power Supply
Technical Specifications
- Input Voltage: 230-240 V~ at 50-60 Hz
- Output Voltage: 27 Vdc continuous low voltage
- Maximum Current: 600 mA
- Protection: Fuse on primary side against overload and short circuit
- Enclosure: 2 DIN modules (17.5 mm each)
- Safety: SELV double insulation
- Dimensions (H x L x W): 38mm x 99mm x 87mm
- Weight: 0.137 kg
Key Features
- Mini power supply designed for local power supply of entrance panels and internal units
- Provides 27 Vdc continuous low voltage output with a maximum current of 600 mA
- Protected on the primary side with fuse against overload and short circuit
- SELV double insulation safety device
- 2 DIN modular enclosure (17.5 mm per module)
- Input voltage: 230-240 V~ at 50-60 Hz
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
- Power supply for entrance panels and internal units in door entry systems
- Suitable for automation and door entry applications requiring additional power
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption design reduces energy usage
- SELV double insulation enhances safety and reduces risk of electrical hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Arteor MyHOME 230V a.c. 2 DIN Module Power Supply with LED Indicator is available now for immediate purchase. Ideal for door entry and automation systems requiring additional power supply.
