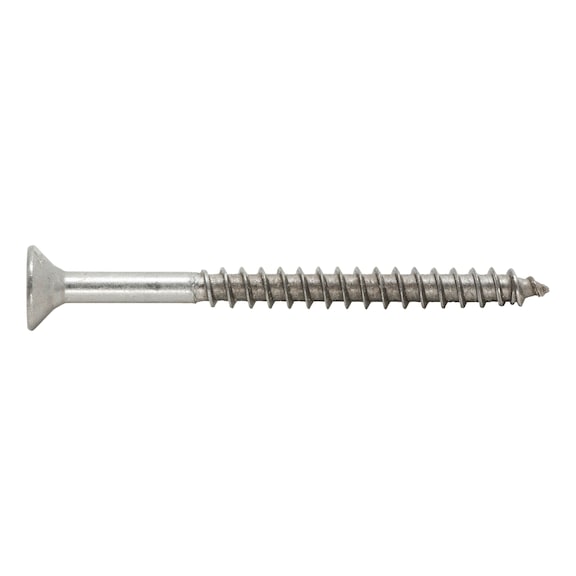

ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
ASSY® 3.0 A2 Chipboard screws are designed for outdoor wood fastening, featuring A2 stainless steel construction for corrosion resistance and a countersunk head for optimal force transmission. Ideal for applications like fences, balconies, and structural woodwork, these screws ensure low screw-in torque and high over-turning force, making installation faster and more efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 180160120
Alternatively Known As: Chipboard screw, Stainless steel wood screw, Outdoor wood screw, Countersunk head screw, AW drive screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 120 mm
- Head type: Countersunk head
- Head diameter: 12 mm
- Head height: 4.1 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 70 mm
- Core diameter: 3.9 mm
- Tip shape: Tip with ring thread
- Tip angle: 30 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Screw-in angle range: 0-90 degrees
- Product weight per item: 14.95 g
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.1mm x 120mm x 12mm
- Weight: 0.015 kg
Key Features
- A2 stainless steel construction for corrosion resistance.
- Partial thread with countersunk head and AW drive for optimal force transmission.
- Asymmetrical single-start thread for greater speed and traction.
- Low screw-in torque and high over-turning force for faster screwing.
- Ring thread reduces wood splitting and blow-outs.
- Virtually no unscrewing of bit and no wobbling during installation.
- Suitable for use in board ply wood, wood, derived timber products, hardwood, LVL, and softwood.
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity, especially in outdoor and load-bearing applications.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Outdoors
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion-resistant stainless steel extends product life, reducing replacement frequency and waste.
- RoHS-compliant, ensuring reduced hazardous substances in manufacturing.
Warranty Information
Product complies with ETA-11/0190 approval and RoHS standards, ensuring quality and safety.
Available Now
Wurth ASSY® 3.0 A2 Chipboard Screw 100 PCS is available for immediate purchase, ideal for outdoor wood fastening applications such as fences, balconies, and play equipment.
