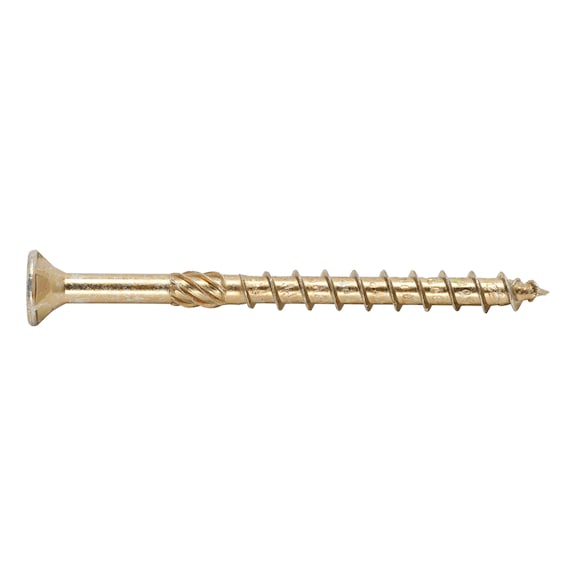

ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
ASSY® 3.0 zinc-plated yellow chipboard screws are designed for optimal performance in furniture construction and carpentry. Featuring a corrosion-resistant finish, countersunk head with milling pockets, and AW drive for efficient force transmission, these screws ensure a secure fit in various wood types. Ideal for both professional and DIY projects, they come with a bit lock accessory for added convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 170310180
Alternatively Known As: Chipboard screws, Wood screws, Zinc-plated screws, Yellow wood screws, Countersunk head screws
Technical Specifications
- Nominal diameter: 10 mm
- Length: 180 mm
- Thread length: 100 mm
- Head type: Countersunk with milling pockets
- Head diameter: 18.5 mm
- Head height: 5.5 mm
- Internal drive: AW40
- Thread type: Wood screw thread, partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 6.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Screw approval: ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 180mm x 18.5mm
- Weight: 0.15 kg
Key Features
- Zinc-plated steel with yellow finish for corrosion resistance
- Partial thread with countersunk milling pocket head
- AW drive for optimum force transmission and fast location
- Asymmetric thread for faster screwing and low torque
- End milling cutter reduces screw-in force and protects tools
- Ring/mating thread design minimizes wood splitting and blow-outs
- Suitable for solid wood, laminated beams, CLT, timber veneer, OSB, chipboard
- Bit lock accessory included
- Screw requiring approval with ETA-11/0190
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and standards.
Applications
- Furniture construction
- Interior fittings
- Carpentry
- Rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Structural woodwork
- Universal use in wood and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Efficient screwing reduces material damage and waste
- Suitable for sustainable timber products
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 3.0 zinc-plated yellow chipboard screws 50 PCS are available for immediate purchase, ideal for furniture, carpentry, and timber construction projects.
