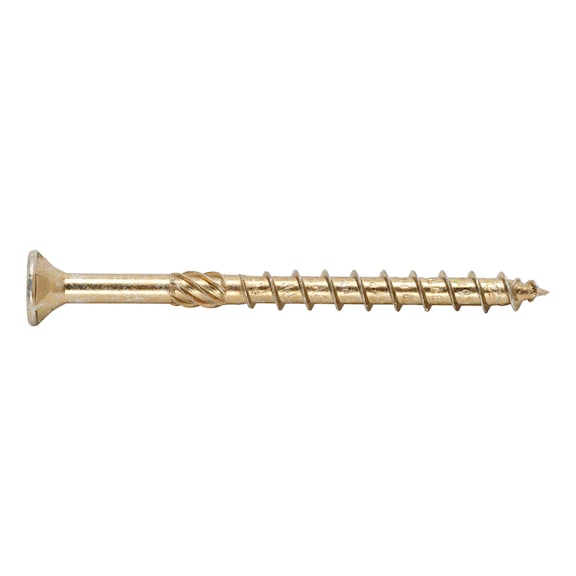

ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
ASSY® 3.0 zinc-plated yellow chipboard screws are designed for reliable fastening in furniture construction and carpentry. With a corrosion-resistant finish and a countersunk head for minimal surface damage, these screws ensure a secure fit and optimal power transmission. Ideal for solid wood and derived timber products, they are perfect for professional carpenters and tradespeople seeking durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 170310280
Alternatively Known As: Chipboard screws, Wood screws, Yellow zinc plated screws, Countersunk wood screws, AW drive screws
Technical Specifications
- Nominal diameter: 10 mm
- Length: 280 mm
- Thread length: 100 mm
- Head type: Countersunk with milling pockets
- Head diameter: 18.5 mm
- Head height: 5.5 mm
- Internal drive: AW40
- Thread type: Wood screw thread, partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 6.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Screw requiring approval: Yes, ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 280mm x 10mm
- Weight: 0.15 kg
Key Features
- Zinc-plated steel with yellow finish for corrosion resistance
- Partial thread with coarse wood screw thread design
- Countersunk head with milling pockets for minimal surface damage
- AW drive for optimum power transmission and secure fit
- Asymmetric thread for faster screwing and low torque
- End milling cutter reduces screw-in force and protects tools
- Ring/mating thread reduces wood splitting and blow-outs
- Suitable for solid wood, laminated beams, CLT, timber veneer, OSB, and chipboard
- Approved with ETA-11/0190
Professional Installation Requirements
- Installation by a professional carpenter or tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Furniture construction
- Interior fittings
- Carpentry
- Rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Structural woodwork
- Universal use in wood and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Efficient screwing reduces energy and tool wear
- Minimized wood damage preserves material integrity
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth ASSY® 3.0 zinc-plated yellow chipboard screws 50 PCS are available for immediate purchase, ideal for furniture, carpentry, and timber construction applications.
