ASSY® 4 PH fittings screw Steel zinc plated full thread pan head 1000 PCS
Wurth ASSY® 4 PH full thread pan head screws made of hardened steel with zinc plating, ideal for universal fixing in wood and metal fittings, suitable for indoor dry or sheltered areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

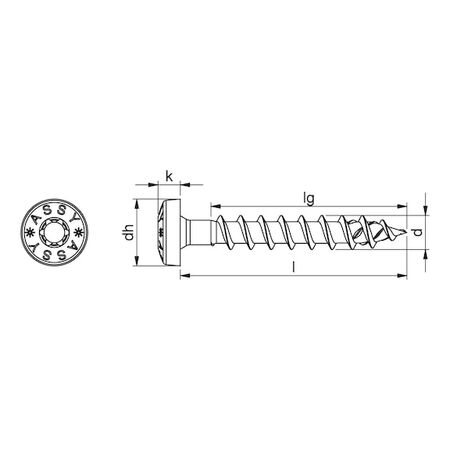

Product Name/Title: ASSY® 4 PH fittings screw Steel zinc plated full thread pan head 1000 PCS
Brand: Wurth
SKU: 153730025
Alternatively Known As: Pan head wood screws, Zinc plated steel screws, Full thread screws, RW drive screws, Universal fixing screws

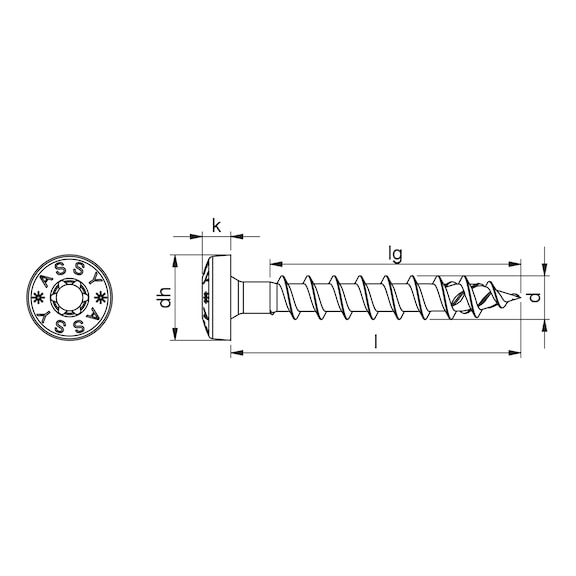

Technical Specifications
- Nominal diameter: 3 mm
- Length: 25 mm
- Head type: Pan head
- Head diameter: 5.8 mm
- Head height: 2.2 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 22.5 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 1.018 g
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Area of application: Universal, Furniture, Metal plate, Wood, Fitting
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 25mm x 5.8mm
- Weight: 1.02 kg
Key Features
- Full-thread design with pan head for universal fixing
- RW10 internal drive for ideal power transmission and fewer bit changes
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Flat fastening for metal sheets for secondary purposes
- Reinforced asymmetrical coarse thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Dome-shaped milling elements in tip reduce splitting effect
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Recommended installation by professionals or skilled personnel to ensure proper fixing and safety.
Applications
- Universal fixing of metal fittings or plastic supports in wood
- Indoor dry or sheltered areas
- Furniture assembly
- Metal plate and wood fittings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Comes with manufacturer warranty and ETA-11/0190 approval ensuring quality and compliance.
Available Now
Wurth ASSY® 4 PH full thread pan head screws are available for immediate purchase, ideal for universal fixing applications in wood and metal fittings.
