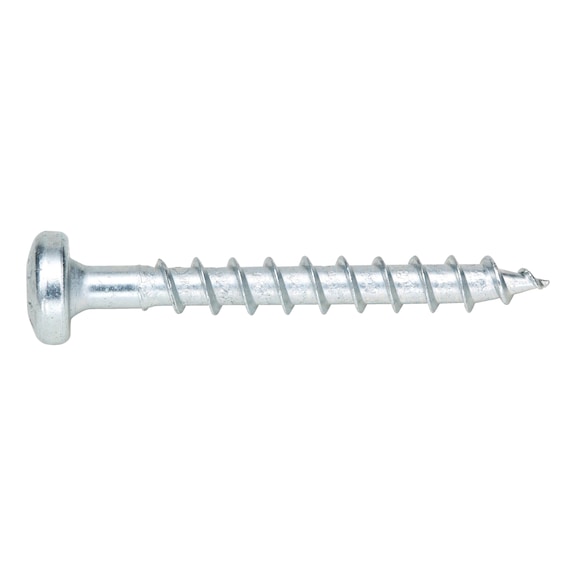

ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
ASSY® D plug screw pan head screws are designed for efficient fastening without a drill tip, making them ideal for wood and metal fitting applications. Crafted from hardened steel and zinc plated for durability, these self-tapping screws ensure excellent tight fit and increased anchor load capacity, perfect for professionals seeking reliable performance in various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153020402
Alternatively Known As: Pan head wood screws, ASSY D screws, self-tapping screws, wood fasteners, plastic anchor screws

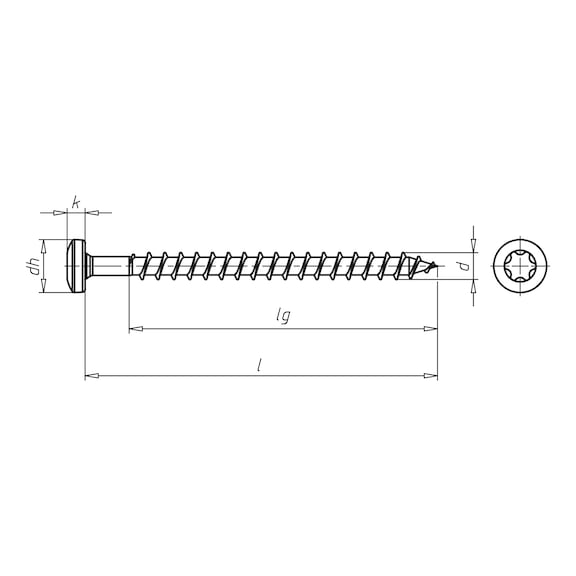

Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4 mm
- Length: 35 mm
- Thread length: 29.5 mm
- Head diameter: 7.9 mm
- Head height: 7.9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 Degree
- Min screw-in angle: 0 Degree
- Suitable materials: Board ply wood (BSP), dowel, wood, derived timber product, hardwood, LVL, softwood
- Area of application: Fitting, metal plate, wood, dowel, universal
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.9mm x 35mm x 7.9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread
- Increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper anchoring and load capacity.
Applications
- Fitting applications involving metal plates and wood
- Use with plastic anchors
- Suitable for board ply wood (BSP), dowel, wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction for long-lasting use reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip 100 PCS are available for immediate purchase, ideal for wood and metal fitting applications.
