ASSY® D Plug Screw Pan Head | Zinc Plated | 4mm Diameter | 40mm Length | @Pack of 100 | by Wurth

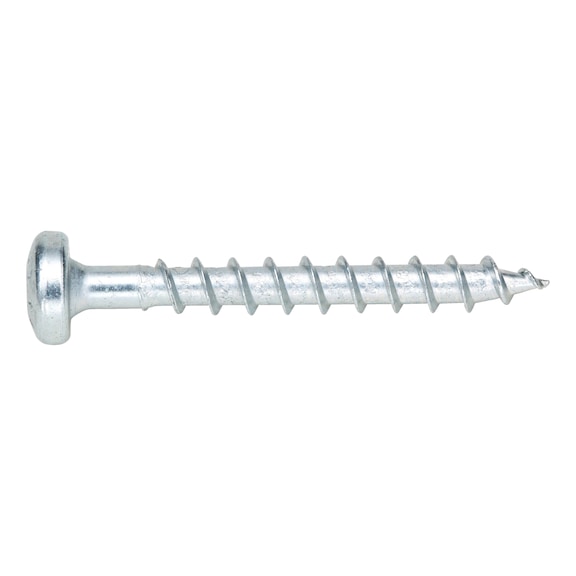

ASSY® D plug screw pan head screws are designed for woodworking and universal fastening applications. With a 4mm nominal diameter and 40mm length, these screws feature a zinc-plated finish for durability and resistance to corrosion. Ideal for fitting metal plates and various wood types, they ensure excellent tight fit and low screw-in torque, making them perfect for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | 4mm Diameter | 40mm Length | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153020403
Alternatively Known As: Pan head wood screws, ASSY D screws, timber screws without drill tip, zinc plated wood screws

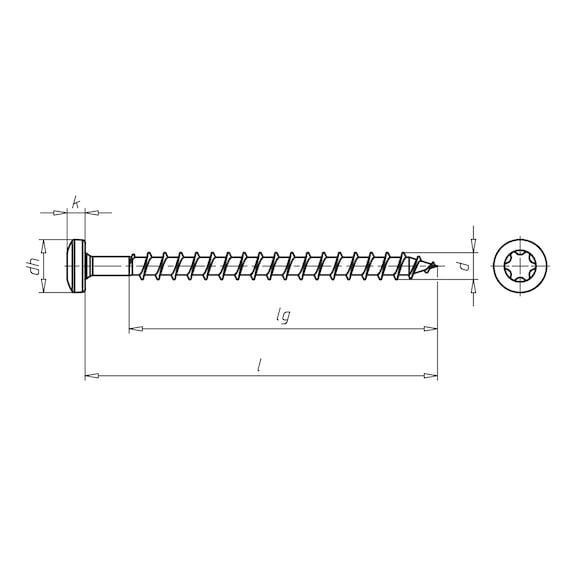

Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4 mm
- Length: 40 mm
- Thread length: 34.5 mm
- Head diameter: 7.9 mm
- Head height: 7.9 mm
- Internal drive: RW20
- Core diameter: 2.5 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 7.9mm x 40mm x 7.9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread for increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a professional or experienced tradesperson recommended for optimal fastening performance and safety.
Applications
- Fitting metal plates
- Woodworking including board ply wood, dowel, hardwood, softwood, LVL
- Universal fastening applications
Standards & Compliance
- AS/NZS 4785 – Timber fasteners
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip, 100 PCS, are available for immediate purchase. Ideal for woodworking, metal plate fitting, and universal fastening applications.
