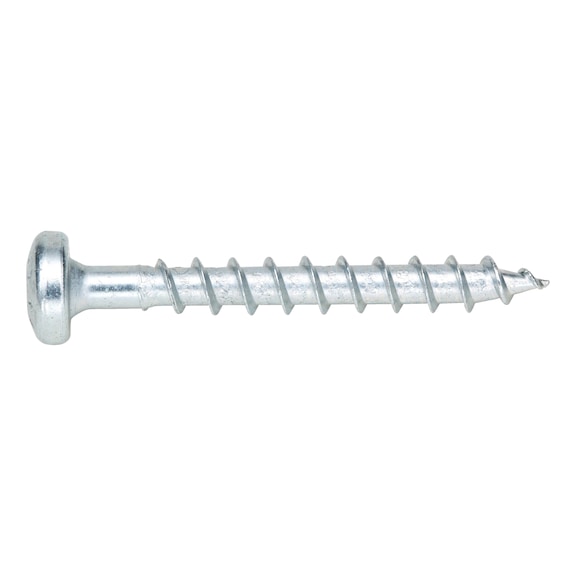

ASSY® D Plug Screw Pan Head | Zinc Plated | 4mm Diameter | Self-Drilling Design | @Pack of 100 | by Wurth
ASSY® D Plug Screw Pan Head screws are designed for efficient wood fastening without a drill tip, featuring a zinc-plated finish and a nominal diameter of 4mm. Ideal for various timber applications, these screws ensure excellent tight fit and high anchor load capacity, making them perfect for professionals seeking reliable performance in wood and derived timber products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | 4mm Diameter | Self-Drilling Design | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153020404
Alternatively Known As: Pan head wood screws, ASSY D screws, self-drilling timber screws, zinc plated wood screws
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4 mm
- Length: 45 mm
- Thread length: 39.5 mm
- Head diameter: 7.9 mm
- Head height: 7.9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.9mm x 45mm x 7.9mm
- Weight: 0.1 kg
Key Features
- Screw without drill tip, counter thread or ring thread for increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with safety standards.
Applications
- Fitting applications in board ply wood (BSP), dowel, wood, derived timber products, hardwood, LVL, softwood
- Metal plate and universal fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip, 100 PCS, are available for immediate purchase. Ideal for timber and wood fastening applications.
