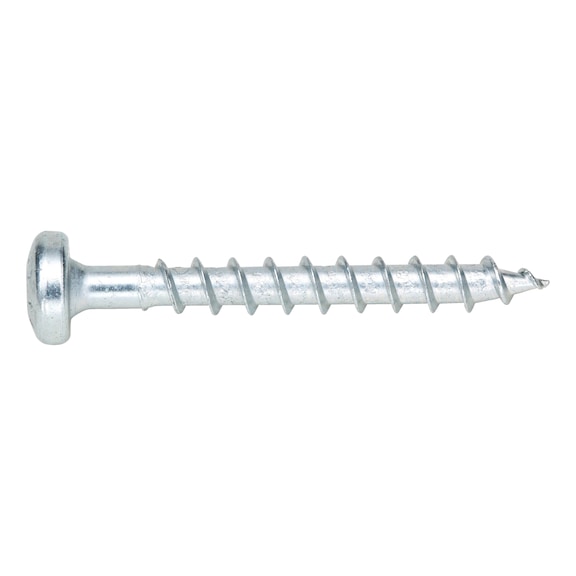

ASSY® D Plug Screw Pan Head | Zinc Plated | 5mm Diameter | 40mm Length | @Pack of 50 | by Wurth
ASSY® D Plug Screws with a zinc-plated finish and 5mm nominal diameter are perfect for timber and metal fastening applications. Designed for optimal power transmission with an RW recess, these screws ensure a tight fit with no wobbling. Ideal for construction and interior fitting, they are RoHS-compliant and come with European Technical Approval ETA-11/0190, making them a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | 5mm Diameter | 40mm Length | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 153020501
Alternatively Known As: Pan head wood screws, ASSY D screws, timber screws without drill tip, RW recess screws
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 5 mm
- Length: 40 mm
- Thread length: 33 mm
- Head diameter: 10 mm
- Head height: 9.75 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Core diameter: 3.2 mm
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 9.75mm x 40mm x 10mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread for increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure correct use with plastic anchors and timber materials.
Applications
- Metal plate fastening
- Wood fastening including board ply wood, dowel, hardwood, softwood, LVL
- Roof construction
- Element construction
- Timber construction
- Interior fitting
Standards & Compliance
- AS/NZS 4785 – Timber fasteners and screws (related standard for timber screws)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plated surface extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip 50 PCS are available for immediate purchase, ideal for timber and metal fastening applications in construction and interior fitting.
