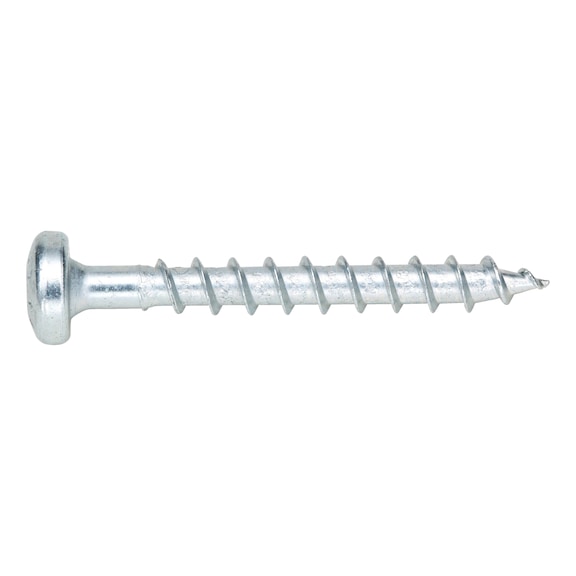

ASSY® D Plug Screw Pan Head | Zinc Plated | 5mm Diameter | Self-Drilling Alternative | @Pack of 50 | by Wurth
ASSY® D plug screw pan head screws are designed for efficient fastening in timber and metal applications. With a 5mm nominal diameter and zinc plating for durability, these screws feature a unique asymmetrical thread design that reduces screw-in torque while providing a secure fit. Ideal for professional tradespeople, they ensure compliance with building codes and are perfect for various construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | 5mm Diameter | Self-Drilling Alternative | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 153020503
Alternatively Known As: Pan head wood screw, ASSY D screw, timber screw, zinc plated screw, self-drilling screw alternative

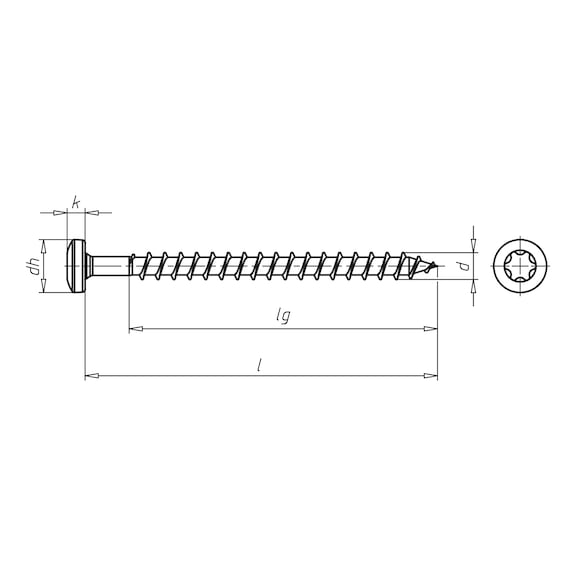

Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 5 mm
- Length: 50 mm
- Thread length: 43 mm
- Head diameter: 10 mm
- Head height: 9.75 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial coarse thread
- Core diameter: 3.2 mm
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 9.75mm x 50mm x 10mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread for increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure correct fastening and compliance with building codes.
Applications
- Metal plate fastening
- Wood fastening including board ply wood, dowel, hardwood, softwood, LVL
- Roof construction
- Element construction
- Timber construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 4785 - Timber screws and fasteners (aligned with European Technical Approval ETA-11/0190)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip are available for immediate purchase. Ideal for timber and metal fastening in construction and interior fitting applications.
