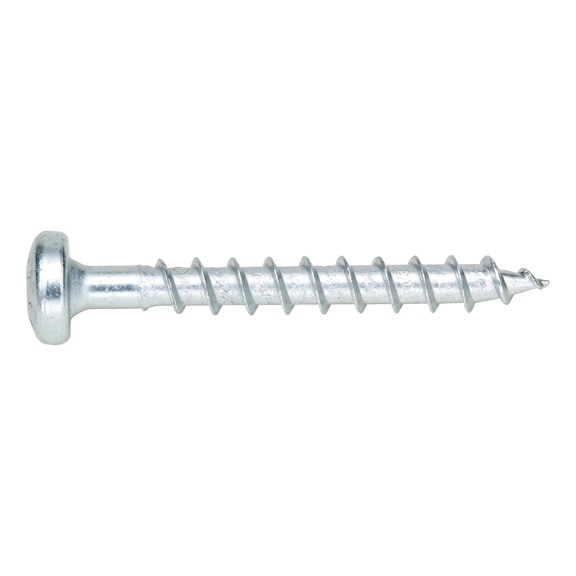

ASSY® D Plug Screw Pan Head | Zinc Plated | Self-Drilling Design | 4mm Diameter | @Pack of 100 | by Wurth
ASSY® D plug screws with a pan head and zinc plating are perfect for woodworking and universal fastening applications. Designed without a drill tip, these screws feature an asymmetrical thread for low screw-in torque and high over-turning force, ensuring a tight fit with no wobbling. Ideal for professionals and DIY enthusiasts alike, they provide excellent anchor load capacity and comply with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | Self-Drilling Design | 4mm Diameter | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153020405
Alternatively Known As: Pan head wood screws, ASSY D screws, self-drilling timber screws, zinc plated wood screws
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4 mm
- Length: 50 mm
- Thread length: 44.5 mm
- Head diameter: 7.9 mm
- Head height: 7.9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Suitable materials: Board ply wood, dowel, wood, derived timber product, hardwood, LVL, softwood
- Dimensions (H x L x W): 7.9mm x 50mm x 7.9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread for increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a professional or experienced tradesperson recommended for optimal fastening performance and safety.
Applications
- Fitting metal plates
- Woodworking including board ply wood, dowel, hardwood, softwood, LVL
- Universal fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip, 100 PCS, are available now for immediate purchase. Ideal for woodworking, metal plate fitting, and universal fastening applications.
