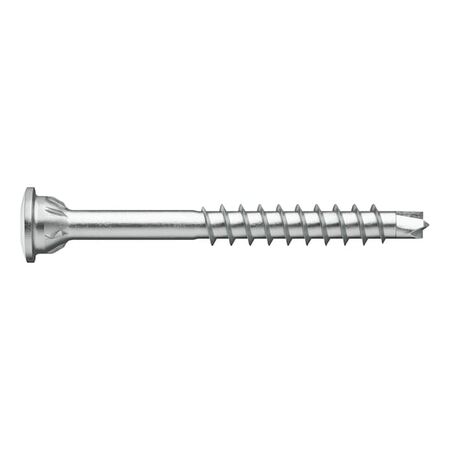

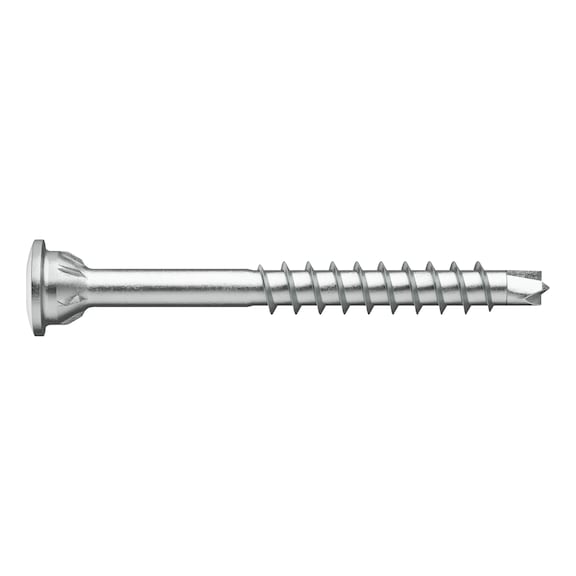

ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
The ASSY®plus 4 A2 TH glass strip screw is crafted from high-quality A2 stainless steel, featuring a 60° top head design and milling ribs for secure fastening. Perfect for outdoor applications, it ensures gap-free installation close to edges of delicate glass strips and skirting boards. With its advanced centring drill tip and RW drive, this screw offers precise positioning and maximum drilling performance, making it ideal for timber construction and structural woodwork.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
Brand: Wurth
SKU: 16613035
Alternatively Known As: Glass strip screw, stainless steel wood screw, partial thread screw, A2 stainless steel screw, outdoor timber screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 35 mm
- Thread length: 16 mm
- Screw-thread length with drill tip: 19.5 mm
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Stainless steel A2
- Surface: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Approval: ETA-11/0190
- Product weight per item: 1.292 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 35mm x 5.2mm
- Weight: 0.0013 kg
Key Features
- Made of high quality, austenitic A2 stainless steel with small top head and milling ribs
- Suitable for gap free fastening close to edges of delicate glass strips or skirting boards in outdoor areas exposed to weathering
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect fit of the bit for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and very clean drilling without chipping
- Maximum drilling performance through drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle start of thread for quick screwing
- Small lens-shaped rounded screw head for unobtrusive mounting
- Highly effective milling ribs prevent splitting of narrow wooden profiles
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Non-magnetic, non-rusting A2 stainless steel material
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Outdoors
- Balcony
- Element construction
- Façades
- Wet areas
- Timber construction
- Timber panel construction
- Structural woodwork
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made of durable stainless steel ensuring long service life and reducing replacement waste
- RoHS-compliant, free from hazardous substances
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus 4 A2 TH Glass Strip Screw is available for immediate purchase, ideal for outdoor timber and glass strip fastening applications.
