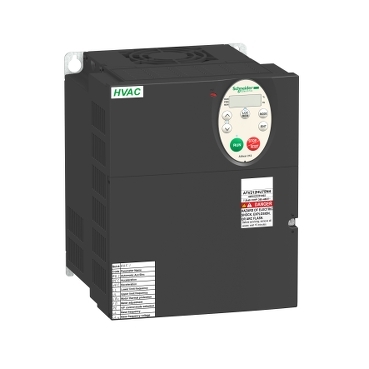

ATV212 Variable Speed Drive | 11kW (15HP) Power Rating | Integrated EMC Filter | Optimized for HVAC | @Pack of 1 | by Clipsal
The ATV212 Variable Speed Drive is engineered for robust motor control with an 11kW (15HP) power rating and three-phase 480V input, making it ideal for HVAC systems and industrial applications. Featuring an integrated EMC filter for reduced electrical noise and advanced motor protection, this drive ensures energy efficiency and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV212 Variable Speed Drive | 11kW (15HP) Power Rating | Integrated EMC Filter | Optimized for HVAC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212HD11N4
Alternatively Known As: ATV212 Variable Speed Drive, Schneider ATV212, 11kW VSD, 15HP VSD, HVAC Drive, SCHATV212HD11N4
Technical Specifications
- Power Rating: 11kW (15HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Frequency: 0.5 to 200 Hz
- Integrated EMC filter (CEM)
- Control Method: V/F, Sensorless Vector Control
- Overload Capacity: 120% for 60 seconds
- Protection: Overcurrent, Overvoltage, Undervoltage, Overtemperature
- Display: Built-in keypad and LCD
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 350mm x 232mm x 180mm
- Weight: 13 kg
Key Features
- 11kW (15HP) power rating for robust motor control
- Three-phase 480V input for industrial applications
- Optimized for HVAC applications with energy-saving features
- Integrated EMC filter for reduced electrical noise
- Compact design for easy panel integration
- Built-in display and keypad for easy configuration
- Advanced motor protection and diagnostics
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial environments
- Water treatment plants
- General motor control for energy efficiency
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes CO2 emissions through efficient operation
- Supports sustainable building management
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever is earlier.
Available Now
The Clipsal ATV212 11KW 15HP 480V TRI CEM Variable Speed Drive (SCHATV212HD11N4) is available for immediate purchase. Ideal for HVAC, industrial, and commercial motor control applications.
