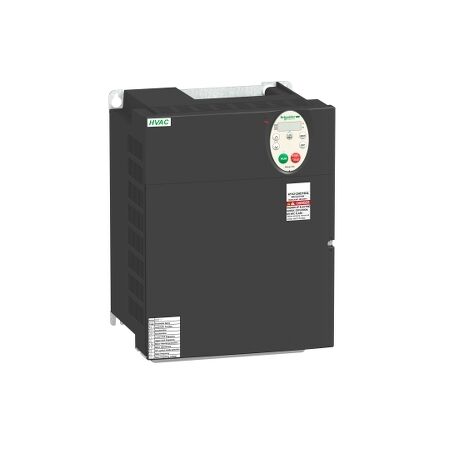

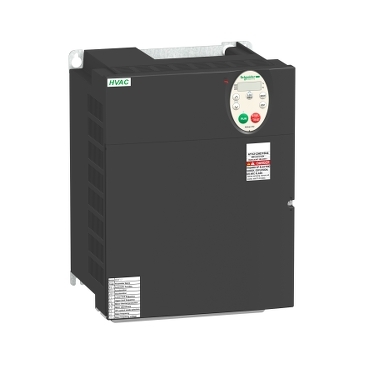

ATV212 Variable Speed Drive 185kW Power Rating Integrated EMC Filter Clipsal
The ATV212 Variable Speed Drive is engineered for heavy-duty applications, featuring a robust 185kW power rating and optimized energy-saving capabilities for HVAC
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV212 Variable Speed Drive | 185kW Power Rating | Integrated EMC Filter | Optimized for HVAC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212HD18N4
Alternatively Known As: ATV212 Variable Speed Drive, Schneider ATV212 185kW VSD, 250HP HVAC Drive, ATV212HD18N4, 480V 3-Phase Inverter
Technical Specifications
- Power Rating: 185kW (250HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Frequency: 0.5 to 200Hz
- Integrated EMC filter (CEM)
- Control Method: V/F, Sensorless Vector Control
- Protection: IP21 (standard), optional IP54
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Overload Capacity: 120% for 60 seconds
- Dimensions (H x L x W): 1420mm x 380mm x 480mm
- Weight: 120 kg
Key Features
- 185kW (250HP) power rating for heavy-duty applications
- Optimized for HVAC applications with energy-saving features
- Three-phase 480V input for industrial environments
- Integrated EMC filter for reduced electrical noise
- Advanced motor control for improved efficiency and reliability
- Built-in communication protocols for easy integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial facilities
- Water treatment plants
- Energy management in large infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Lowers greenhouse gas emissions through efficient operation
- Supports sustainable building management
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal ATV212 185kW 250HP 480V 3-Phase Variable Speed Drive (SCHATV212HD18N4) is available for immediate purchase. Ideal for HVAC, industrial, and infrastructure applications requiring reliable motor control.
