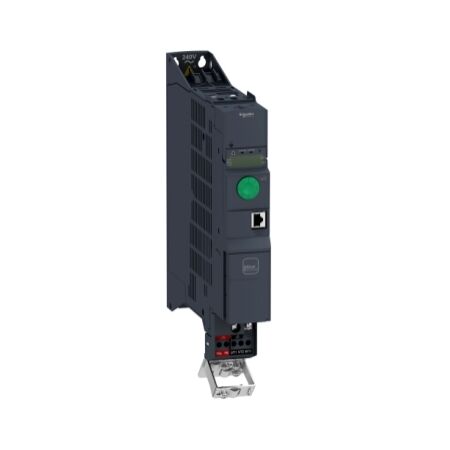

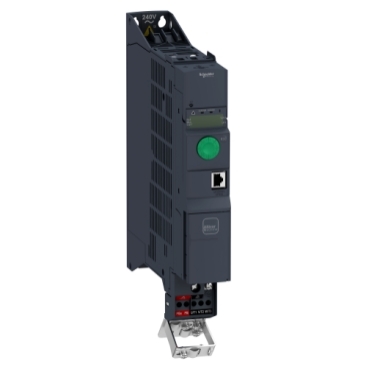

ATV320 Variable Speed Drive 1.1kW Power Rating Integrated Braking Control Clipsal
The ATV320 Variable Speed Drive is designed for efficient motor control, featuring a 1.1kW power rating and integrated braking control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV320 Variable Speed Drive | 1.1kW Power Rating | Integrated Braking Control | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U11N4B
Alternatively Known As: ATV320 Variable Speed Drive, Schneider ATV320U11N4B, 1.1kW VSD, 400V 3 Phase Inverter, Motor Drive Controller
Technical Specifications
- Power rating: 1.1kW (1.5HP)
- Input voltage: 380-500V AC, 3-phase
- Output voltage: 0-500V AC, 3-phase
- Input frequency: 50/60Hz
- Output frequency: 0.1-599Hz
- Integrated braking transistor
- EMC filter: Integrated
- Control type: V/F, sensorless vector control
- Protection: IP20
- Operating temperature: -10°C to +50°C
- Communication: Modbus, CANopen (expandable)
- Dimensions (H x L x W): 143mm x 153mm x 72mm
- Weight: 2.5 kg
Key Features
- 1.1kW (1.5HP) power rating
- Three-phase 400V input
- Integrated braking control
- Variable speed drive for asynchronous and synchronous motors
- Compact design for easy panel integration
- Robust performance in harsh environments
- Integrated EMC filter
- Flexible communication options
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- General machinery requiring variable speed control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance
- Supports lower power consumption and operational costs
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV320 1.1kW 400V 3PH Variable Speed Drive (SCHATV320U11N4B) is available for immediate purchase. Ideal for industrial automation and motor control applications.
