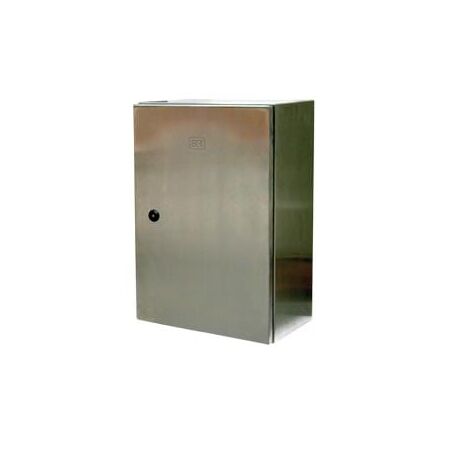

Ausrack IP66 Cabinet System | 600x600x400mm | 316SS & Zinc Steel | Lockable by B&R Enclosures

BRAND: B&R Enclosures

SKU: ARIP11U64/S

$4,232.60 List price: $5,320.00

+ −

30 Days Return Delivery Options

Ausrack IP66 cabinet system with 600x600x400mm dimensions and 316 stainless steel or zinc-coated steel—ideal for data centers and industrial environments. Built for dust and water protection, with lockable handles and adjustable 19” rack rails.

Description
Attachments

Product Name/Title: Ausrack IP S/S Encl 600x600x400mm

Brand: B&R Enclosures

SKU: ARIP11U64/S

Alternatively Known As: Ausrack IP Cabinet, 316SS Rack, IP66 Cabinet System

Technical Specifications

Material: 1.5mm 316 stainless steel or 1.6mm zinc coated steel.
IP Rating: IP66.
Height: 600mm.
Width: 600mm.
Depth: 400mm.
Dimensions (H x L x W): 600mm x 400mm x 600mm
Weight: 25 kg

Key Features

19” cabinet system designed to protect sensitive equipment from harsh environments.
Suitable for protecting equipment from dust and water.
Designed to accommodate small to medium passive patching networks.
Easy cabling via gland plate.
Manufactured from 1.6mm zinc coated steel or 1.5mm 316 stainless steel.
ASSDA approved N4 surface finish.
Front and rear adjustable 19″ rack rails.
Gland plate (fitted internally or externally).
7mm square turnbuckle lock.
Lockable L handles.
3-point locking.
Removable back.
Door rails.
Earth strap kit.

Professional Installation Requirements

Professional installation is recommended to ensure proper setup and safety.

Applications

Data centers: Protecting sensitive networking equipment
Telecommunications: Suitable for passive patching networks
Industrial: Environments requiring dust and water protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Ausrack IP – 316SS Cabinet System is available now for immediate purchase. Ideal for protecting sensitive equipment in various environments.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
