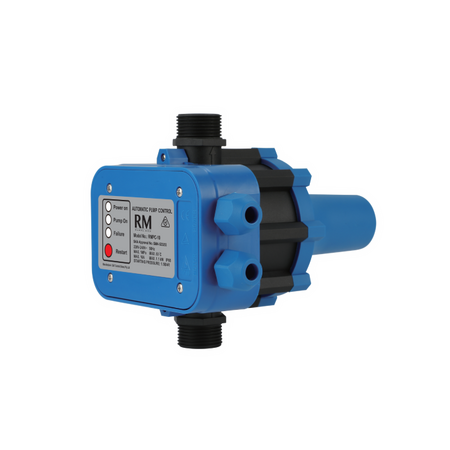

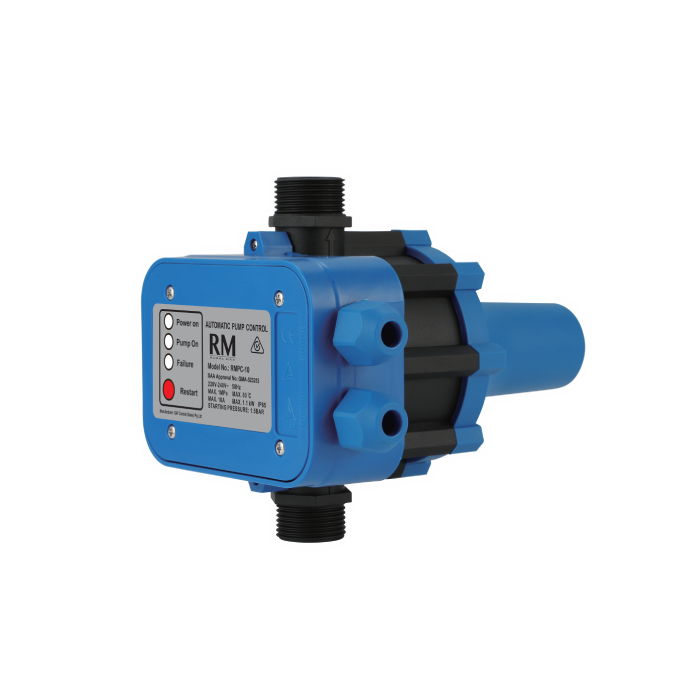

Automatic Pressure Switch Pump Controller 10A Rural Max

BRAND: Rural Max
SKU: RMPC10
$66.80 List price: $89.10
+ −
30 Days Return Electricians Unlock Trade Access
Rural Max pump controller features automatic pressure switch operation, 10A rating and simple installation. Ideal for household and rural water pumps.

Alternatively Known As: Rural Max RMPC‑10 Pump Controller

Technical Specifications
  • Model: RMPC‑10
  • Max Rated Current: 10 A
  • Maximum Pump Size: 1.1 kW
  • Pre‑set Cut‑in Pressure: 1.5 bar
  • Maximum Allowable Pressure: 10 bar
  • Inlet/Outlet Size: 1" BSP
  • Rated Voltage: 220 V, 50 Hz
  • Max Ambient Temperature: 40 °C
  • Max Liquid Temperature: 60 °C
  • Ingress Protection: IP65
  • Dimensions (H x L x W): 230mm x 180mm x 250mm
  • Weight: 2.0 kg
Key Features
  • No settings required – simplifies installation
  • Run‑dry protection guards pump against damage
  • Preset cut‑in pressure ensures automatic operation
  • Compact plug‑and‑play design
Professional Installation Requirements
  • Installation must comply with AS/NZS 3000 wiring regulations and be performed by a licensed electrician where mains electrical connection is required.
Applications
  • Automatic control of household and rural water pumps
  • Residential and small rural water supply systems
  • Simple plug‑and‑operate pressure pump control
Standards & Compliance
  • AS/NZS 3000 (Wiring and electrical installation)
Environmental Benefits
  • Run‑dry protection extends pump lifespan, reducing waste
Warranty Information

Standard Consumer Warranty (as per Rural Max pump controller product listings)

Available Now

Available through authorised Australian distributors and resellers.
