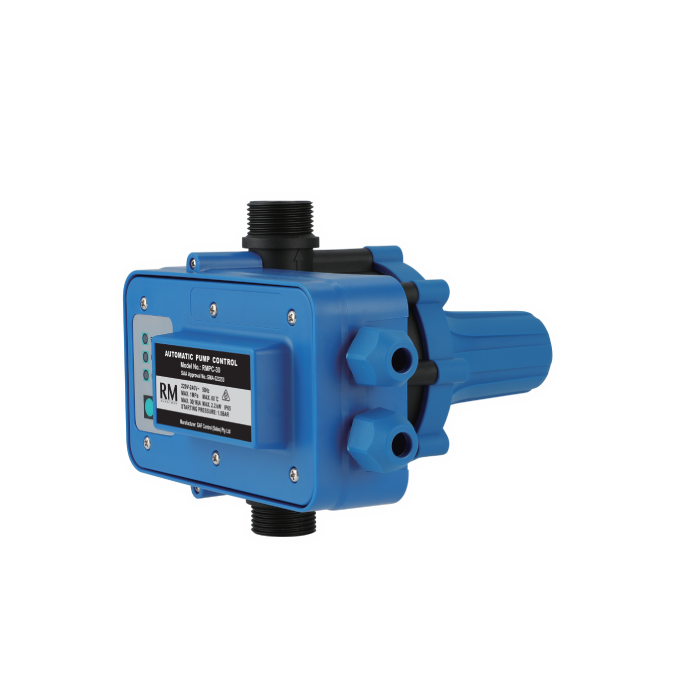

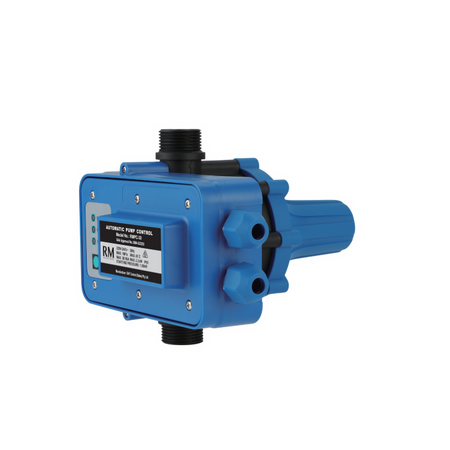

Automatic Pressure Switch Pump Controller 30A Rural Max

BRAND: Rural Max
SKU: RMPC30
$113.60 List price: $151.50
+ −
30 Days Return Electricians Unlock Trade Access
Rural Max pump controller features automatic pressure switch operation, 30A rating and reliable switching. Ideal for medium rural and farm water pumps.

Alternatively Known As: Automatic Pressure Switch, Pump Controller, RMPC-30

Technical Specifications
  • Model: RMPC-30
  • Max Rated Current: 30A
  • Maximum Pump Size: 3HP / 2.2KW
  • Pre-set Pressure Range: 1.5 Bar
  • Max Allowable Pressure: 10 Bar
  • Inlet/Outlet Size: 1 inch
  • Rated Voltage: 220V
  • Frequency: 50 Hz
  • Max Ambient Temperature: 40°C
  • Max Liquid Temperature: 60°C
  • Protection Degree: IP65
  • Dimensions (H x L x W): 200mm x 150mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Automatic pressure switch operation
  • Run dry protection to prevent pump damage
  • High current rating of 30A
  • User-friendly operation with no configuration needed
  • IP65 protection against dust and water
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
  • Medium rural and farm water pumps
  • Pump automation for water supply systems
  • Protection of pumps against dry running conditions
Standards & Compliance
  • AS/NZS 3820
  • AS/NZS 60335
Environmental Benefits
  • Prevents pump damage thereby extending lifespan
  • Energy efficiency by automating pump operation
Warranty Information

Warranty details available upon request from the manufacturer.

Available Now

Available through authorised Australian distributors.
