Automatic Transfer Switch 4 Pole 80A | Integrated Logic | IP20 Rated by NHP
Automatic transfer switch with 4 pole design and integrated logic—ideal for industrial and commercial power management. Built for reliable switching, with IP20 protection against solid objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

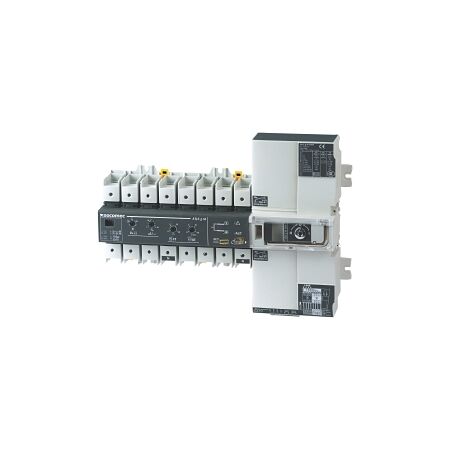

Product Name/Title: Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 4 Pole 80A
Brand: NHP
SKU: 93544008
Alternatively Known As: Automatic Transfer Switch, ATyS M Switch, Power Transfer Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 80 A
- Rated Operation Power: 40 kW
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 600 V
- Degree of Protection: IP20
- Motor Drive: Integrated
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 245mm x 73.5mm x 324mm
- Weight: 4.32 kg
Key Features
- 4 Pole design for reliable switching
- Integrated logic for automatic operation
- IP20 rated for protection against solid objects
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Socomec ATyS M Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power management applications.
