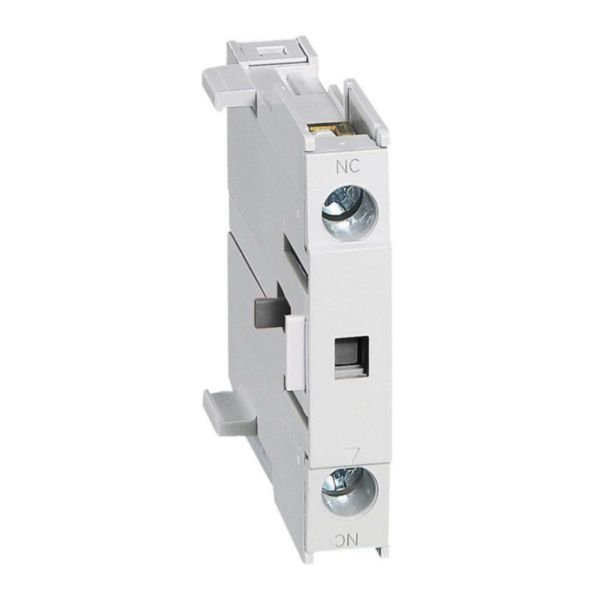

Auxiliary Contact 1NC for CTX3 Mini Relays | Side Mounting | 10A Rated Current | Screw Connection | @EA of 1 | by Legrand
The Auxiliary Contact 1NC for CTX3 Mini Relays is designed for reliable motor control and protection systems. With a rated thermal current of 10A and a minimum switching voltage of 24V DC, this clip-on model allows for easy side mounting on either side of the contactor. Ideal for tertiary and industrial electrical installations, it ensures compliance with IEC standards for auxiliary contacts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of normally closed contacts: 1
- Number of normally open contacts: 0
- Number of change-over contacts: 0
- Rated operation current Ie at AC-15, 230 V: 3 A
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Type of electric connection: Screw connection
- Mounting method: Side mounting
- Model: Clip-on
- Dimensions (H x L x W): 40mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- 1NC auxiliary contact unit with a rated thermal current (Ith) of 10A
- NC auxiliary contact meets mirror contact definition according to IEC 60947-4-1
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Clip-on model for easy side mounting on left or right side of the contactor
- Rated operation current Ie at AC-15, 230 V: 3 A
- Screw connection type for electrical connection
- Environmentally conscious design complying with substance-restriction requirements
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Tertiary and industrial electrical installations
- Motor control and protection systems
- Control relay auxiliary contact applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Meets IEC 60947-4-1 standard for auxiliary contacts
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
Legrand Auxiliary Contact 1NC for CTX3 Mini and Control Relays is available for immediate purchase, ideal for tertiary and industrial motor control applications.
