Auxiliary Contact 1NO 1NC | 690V Rated | Side Mount by NHP
Auxiliary contact with 1NO and 1NC configuration, rated for 690V—ideal for motor control and protection systems. Built for industrial and commercial use, with side mounting for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

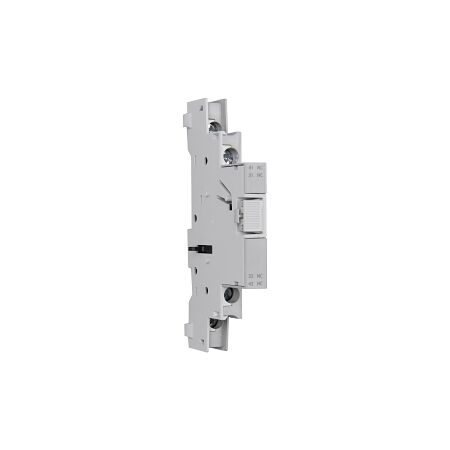

Product Name/Title: S+S KT9 Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount
Brand: NHP
SKU: KT9PA111
Alternatively Known As: KT9 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of contacts: 1 NO, 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (24 V): 6 A
- Rated operation current at AC 15 (120 V): 5 A
- Rated operation current at AC 15 (240 V): 3 A
- Rated operation current at AC 15 (400 V): 2 A
- Rated operation current at DC 13 (24 V): 2 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Mounting method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Rated insulation voltage of 690 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection systems
- Commercial: Equipment requiring auxiliary contacts for control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances safety and reliability in motor control systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial applications.
