Auxiliary Contact 2NC Side Mount | 690V | 10A by NHP
Auxiliary contact with 2 normally closed contacts and side mounting—ideal for motor protection and electrical control systems. Built for industrial and commercial use, ensuring reliable operation and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

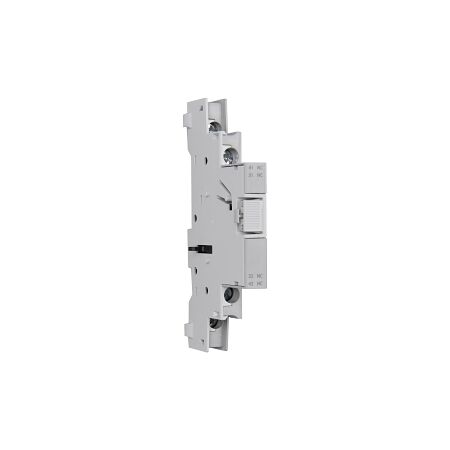

Product Name/Title: S+S KT9 Auxiliary Contact with 2NC Contact Side Mount
Brand: NHP
SKU: KT9PA102
Alternatively Known As: KT9PA102, Auxiliary Contact Block, Motor Protection Auxiliary Contact
Technical Specifications
- Number of Contacts: 2 NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 24 V: 6 A
- Rated Operation Current at AC 15 120 V: 5 A
- Rated Operation Current at AC 15 240 V: 3 A
- Rated Operation Current at AC 15 400 V: 2 A
- Rated Operation Current at DC 13 24 V: 2 A
- Rated Operation Current at DC 13 125 V: 0.55 A
- Rated Operation Current at DC 13 250 V: 0.27 A
- Mounting Method: Side mounting
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 normally closed contacts for reliable operation.
- Side mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection applications
- Commercial: Electrical control systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of failures.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Auxiliary Contact with 2NC Contact Side Mount is available now for immediate purchase. Ideal for motor protection and electrical control systems.
