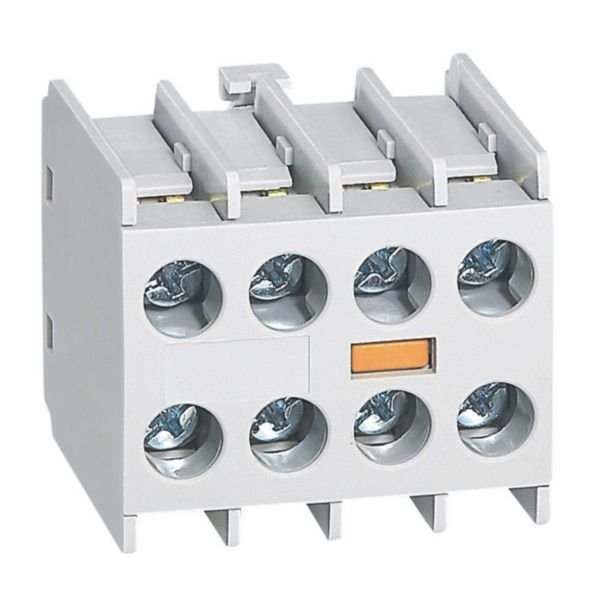

Auxiliary Contact 3NO1NC for CTX3 Mini Relays | 3 NO & 1 NC Contacts | Clip-On Design | @EA of 1 | by Legrand
The Auxiliary Contact 3NO1NC for CTX3 mini relays features 3 normally open and 1 normally closed contact, making it ideal for motor control and protection systems. Designed for easy installation with a clip-on model and front fastening, this contact block ensures reliable performance in tertiary and industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 1
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
- Dimensions (H x L x W): 60mm x 30mm x 45mm
- Weight: 0.1 kg
Key Features
- 3 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts
- NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Rated operation current Ie at AC-15, 230 V: 3 A
- Clip-on model with front fastening for easy installation
- Environmentally conscious design complying with substance restriction requirements
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting on CTX3 mini contactors.
Applications
- Tertiary and industrial electrical installations
- Motor control and protection systems
- Use with CTX3 mini contactors and control relays
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with IEC 60947-4-1 standard referenced in AS/NZS standards for electrical equipment
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance restriction requirements to reduce hazardous materials
Warranty Information
Standard Legrand warranty applies; typically 1 year against manufacturing defects.
Available Now
Legrand Auxiliary Contact 3NO1NC for CTX3 Mini and Control Relays is available for immediate purchase, ideal for tertiary and industrial motor control applications.
