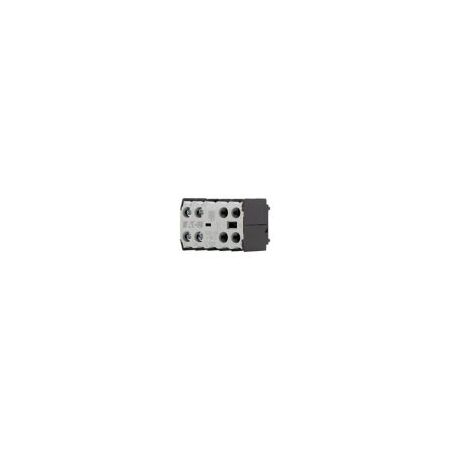

Auxiliary Contact Block | 600V AC Rated | 10 Million Operations | Screw Connection by Eaton
This auxiliary contact block features a rated operational voltage of up to 600V AC and a mechanical lifespan of 10 million operations—ideal for industrial and commercial electrical control applications. Built for reliable signaling and interlocking in motor starters and control panels, it ensures secure installation with front fixing screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact Block | 600V AC Rated | 10 Million Operations | Screw Connection by Eaton
Brand: Eaton
SKU: Y7-10080
Alternatively Known As: Auxiliary contact block, DILEM contact module, Eaton DILEM auxiliary switch, Auxiliary contact accessory
Technical Specifications
- Electric connection type: Screw connection
- Rated operational voltage (Ue) at AC - max: 600 V
- Rated insulation voltage (Ui): 690 V
- Rated operational current (Ie) at AC-15, 220-240 V: 4 A
- Rated operational current (Ie) at AC-15, 380-415 V: 2 A
- Rated operational current (Ie) at AC-15, 500 V: 1.5 A
- Mechanical lifespan: 10,000,000 operations (AC operated)
- Operating frequency: 9000 operations/hour
- Overvoltage category: III
- Pollution degree: 3
- Protection: Finger and back-of-hand proof (EN 50274)
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 10 g mechanical shock
- Terminal capacity (flexible with ferrule): 1 x (0.75 - 1.5) mm² or 2 x (0.75 - 1.5) mm²
- Terminal capacity (solid): 1 x (0.75 - 2.5) mm² or 2 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Safe isolation: 300 V AC between coil and auxiliary contacts (EN 61140)
- Dimensions (H x L x W): 32mm x 36mm x 45mm
- Weight: 0.03 kg
Key Features
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Front fixing with screw terminals for secure installation
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Rated operational voltage up to 600 V AC
- Mechanical lifespan up to 10,000,000 operations (AC operated)
- Protection against direct contact from front (EN 50274)
- Shock resistance compliant with IEC/EN 60068-2-27
- Operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and proper integration into control systems.
Applications
- Standard industrial and commercial electrical control applications requiring auxiliary contact modules
- Use in motor starters, contactors, and control panels for signaling and interlocking
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series DILEM Auxiliary Contact Module is available for immediate purchase, ideal for industrial and commercial electrical control applications.
