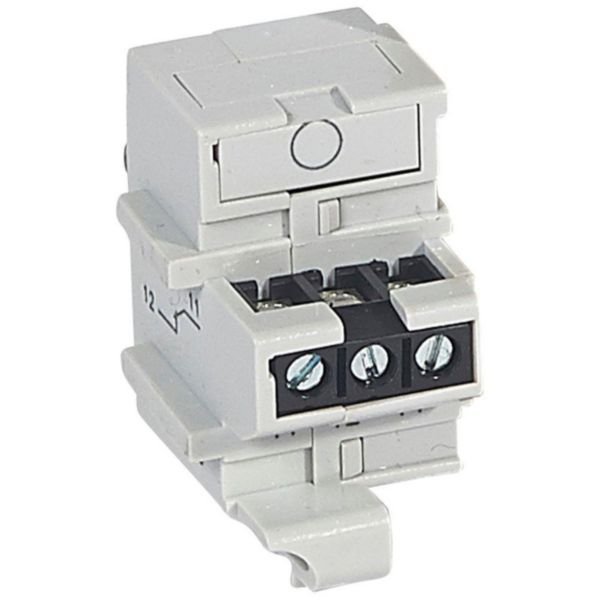

Auxiliary Contact Block for DRX | 1 Auxiliary Contact | Clip-On Model | Left-Hand Side Mounting | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 027140
$110.10 List price: $137.20
+ −
30 Days Return Delivery Options
The Auxiliary Contact Block for DRX is designed for reliable switching and control in low-voltage electrical lines. Featuring 1 auxiliary contact and a clip-on model, it ensures easy installation on the left-hand side of DRX 250 thermal magnetic MCCBs. Ideal for switchboards and power cabinets, this block enhances system efficiency and safety, making it a perfect choice for qualified electricians.

Product Name/Title: Auxiliary Contact Block for DRX | 1 Auxiliary Contact | Clip-On Model | Left-Hand Side Mounting | @EA of 1 | by Legrand

Brand: Legrand

SKU: 027140

Alternatively Known As: Auxiliary contact block for DRX, DRX auxiliary contact, MCCB auxiliary contact block, Legrand DRX contact block

Technical Specifications
  • Number of change-over contacts: 1
  • Number of normally open contacts: 0
  • Number of normally closed contacts: 0
  • Rated operation current Ie at AC-15, 230 V: 6 A
  • Type of electric connection: Screw connection
  • Model: Clip-on
  • Mounting method: Left-hand side
  • Dimensions (H x L x W): 60mm x 30mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Designed for DRX 250 thermal magnetic MCCBs from 125 to 250 A
  • Suitable for switching, control, isolation, and protection of low-voltage electrical lines
  • Can be fitted with auxiliaries
  • Includes M8 terminals, fixing screws, and insulating shields
  • Fixed thermal and magnetic protection
  • Conforms to IEC 60947-2
  • Left-hand side mounting
  • Block with 1 auxiliary contact
  • Rated operation current Ie at AC-15, 230 V: 6 A
  • Screw connection type
  • Clip-on model
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DRX MCCBs.
Applications
  • Switchboards and power cabinets
  • Circuit breaker and moulded case switch control and signalling
  • Low-voltage electrical line switching, control, isolation, and protection
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical system efficiency by enabling precise control and signalling
  • Supports safe and reliable operation of electrical installations, reducing risk of faults and energy waste
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Auxiliary Contact Block for DRX with 1 auxiliary is available for immediate purchase, ideal for use in switchboards and power cabinets requiring reliable auxiliary contacts.
