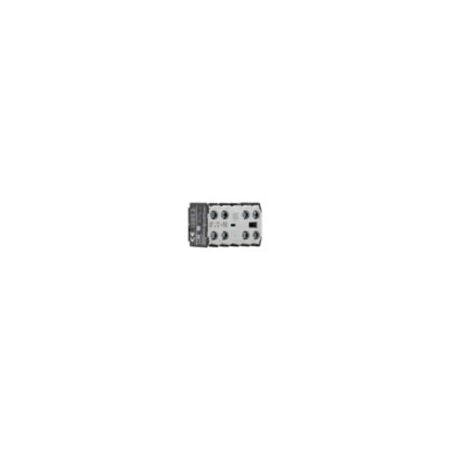

Auxiliary Contact Module 4 Pole | 600V AC | 20 Million Operations | Front Fixing by Eaton
This 4 pole auxiliary contact module features 4 normally open contacts and is rated for operational voltage up to 600V AC—ideal for industrial control panels and automation systems. Built for reliable performance with a mechanical lifespan of 20 million operations, it ensures efficient operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact Module 4 Pole | 600V AC | 20 Million Operations | Front Fixing by Eaton
Brand: Eaton
SKU: Y7-10304
Alternatively Known As: Auxiliary contact block, Auxiliary contact module 4 pole, DILE auxiliary contact, Eaton DILE contact module
Technical Specifications
- 4 pole, 4 normally open contacts
- Front fixing mounting method
- Screw connection terminals
- Rated operational voltage (Ue) max 600 V AC
- Rated insulation voltage (Ui) 690 V
- Rated operational current (Ie) 2.5 A at 24 V DC L/R ≤ 15 ms
- Mechanical lifespan: 20,000,000 operations (DC operated)
- Operating frequency: 9000 operations/hour
- Overvoltage category III, Pollution degree 3
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 8 g (N/C contact), 10 g (N/O contact)
- Ambient operating temperature: -25 °C to 50 °C
- Terminal capacity: flexible 0.75 - 1.5 mm², solid 0.75 - 2.5 mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 32mm x 36mm x 45mm
- Weight: 0.04 kg
Key Features
- 4 pole, 4 normally open (N/O) contacts
- Front fixing with screw terminals
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Rated operational voltage up to 600 V AC
- Mechanical lifespan up to 20,000,000 operations (DC operated)
- Protection against direct contact from front (EN 50274)
- Shock resistance compliant with IEC/EN 60068-2-27
- Operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control panels
- Electrical switchgear assemblies
- Automation systems requiring auxiliary contact modules
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Moeller series DILE Auxiliary contact module is available for immediate purchase, ideal for industrial and automation control applications.
