Trade Discount 22%

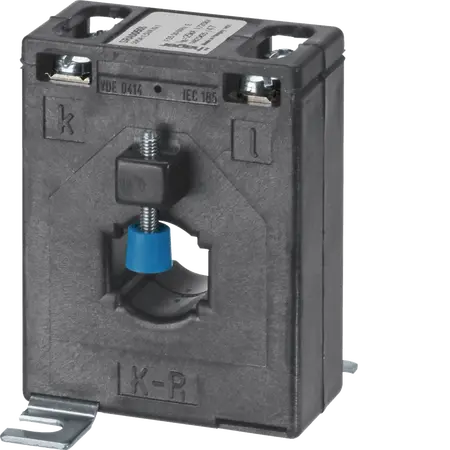

Bar Current Transformer 50/5A | 1.5VA Class 1 | Screw Terminal | -40 to 40°C by Hager
Bar current transformer with 50/5A rating and 1.5VA power—ideal for industrial and commercial energy management. Built for precise measurements, with screw terminal connectivity and a wide operating temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bar/Cable-through Current Transformer BG 213 50/5A 1,5VA Class 1
Brand: Hager
SKU: SRA00505
Alternatively Known As: Current Transformer, CT, Bar Current Transformer, Cable-through Current Transformer
Technical Specifications
- Power: 1.50 VA
- Total power loss under IN: 0.50 W
- Diameter of opening: 20 mm
- Max. intensity of primary: 50 A
- Max. intensity of secondary: 5 A
- Ingress Protection (IP) class: IP10
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 3000 V
- Flexible conductor cross-section: 1.5 - 6 mm²
- Rigid conductor cross-section: 1.5 - 6 mm²
- Dimensions (H x L x W): 78mm x 30mm x 60mm
- Weight: 0.5 kg
Key Features
- Accuracy class 1 for precise measurements.
- Screw terminal connectivity for easy installation.
- Operating temperature range of -40 to 40 °C.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power monitoring and measurement
- Commercial: Energy management systems
- General: Electrical installations requiring current transformation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Bar/Cable-through Current Transformer BG 213 50/5A 1,5VA Class 1 is available now for immediate purchase. Ideal for industrial and commercial applications requiring accurate current measurement.
