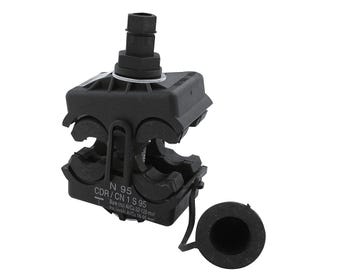

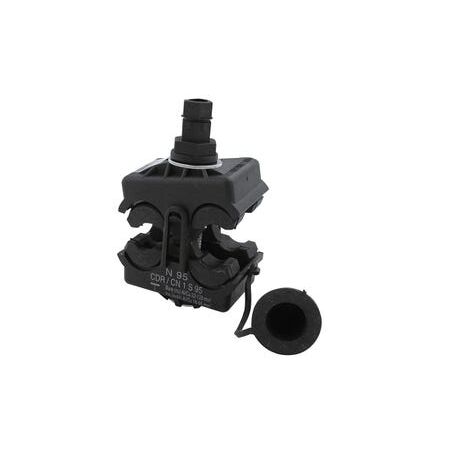

Bare Wire to Insulation Piercing Connector | 150mm² to 95mm² | Tinned Brass Contact | Live Installation by Cabac
Cabac Bare Wire to Insulation Piercing Connector 150-95mm2 provides a quick and reliable method to connect bare conductors to insulated ABC cables using a unique insulation piercing technique, suitable for live installations and all weather conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bare Wire to Ins Pierc Conn. 150-95mm2
Brand: Cabac
SKU: IPCB150/95
Alternatively Known As: Insulation Piercing Connector, IPC Connector, ABC Cable Connector, Bare Wire to ABC Connector
Technical Specifications
- Suitable for main cable range: 150 mm²
- Suitable for branch cable range: 95 mm²
- Contact bridges made from tinned brass copper
- Installation torque controlled by hex nut shear
- Compatible with low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Installation can be performed live without removing insulation
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.3 kg
Key Features
- Connects bare copper or aluminium conductors to ABC style insulated cables
- Uses conventional IPC style piercing of the insulated conductor
- Contact bridges made from tinned brass copper for reliable conductivity
- Suitable for all weather applications
- Connections can be made in minutes
- Suitable for Class 2 conductor
- Installation can be done fully live without removing insulation
- Hex nut shears at correct torque for secure connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with overhead line connectors and live cable work to ensure safety and compliance.
Applications
- Electrical power connectivity for overhead line ABC cables
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for outdoor and all weather electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping, minimizing waste and potential conductor damage
- Enables secure connections that reduce energy loss and improve system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Bare Wire to Insulation Piercing Connector 150-95mm2 is available now for immediate purchase. Ideal for electrical contractors and utilities working with overhead ABC cables.
