Trade Discount 25%

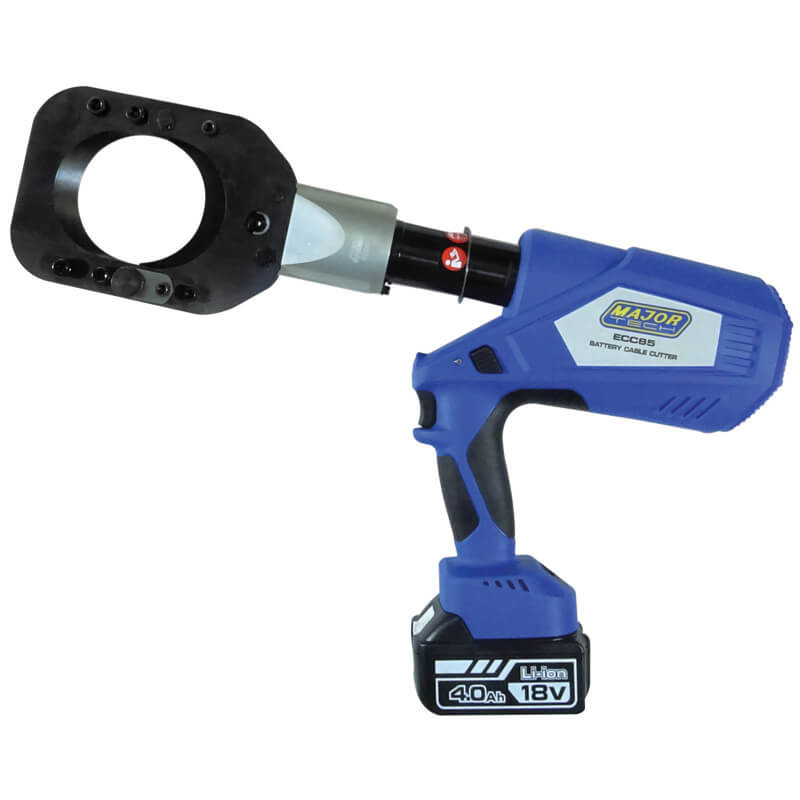

Battery Powered Cable Cutter 85mm MajorTech
MajorTech battery powered cable cutter features 85mm capacity and motorised drive for fast clean cuts. Ideal for large cable cutting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Battery Powered Hydraulic Cable Cutter, Electric Cable Cutting Tool, 85mm Cable Cutter
Technical Specifications
- Model: ECC85
- Cutting Capacity: Ø85mm overall diameter
- Cutting Force: 60kN
- Stroke: 86mm
- Drive System: Two-stage hydraulic system with fast feed and power control
- Control System: Micro-computer controlled
- Display: OLED display
- Compatible Cables: Armoured copper/aluminium cable, ACSR and copper/aluminium cable
- Battery: 18V lithium-ion, 4.0Ah
- Charger: 18V 4.0Ah charger
- Kit Contents: Cable cutter, two batteries, charger and carrying case
- Dimensions (H x L x W): 230mm x 420mm x 110mm
- Weight: 4.4 kg
Key Features
- Cuts cables up to 85mm overall diameter
- Suitable for armoured Cu/Al cable, ACSR and Cu/Al cable
- 60kN hydraulic cutting force for large cable applications
- Two-stage hydraulic system provides rapid feed and power control
- OLED display for operating and maintenance information
- Micro-computer control system
- Supplied with two 4.0Ah lithium-ion batteries
- Includes carrying case for transport and storage
Applications
- Electrical cable installation and maintenance
- Utility and infrastructure cable work
- Industrial switchboard and distribution installations
- Solar, renewable-energy and battery-system cable work
- Cutting large copper, aluminium, armoured and ACSR cables
Environmental Benefits
- Rechargeable lithium-ion batteries reduce reliance on disposable batteries during repeated use
- Durable hydraulic construction can extend service life and reduce replacement-tool waste
- Suitable for cutting recyclable copper and aluminium cable conductors
- Battery operation avoids direct mains power use at the point of cutting
Warranty Information
MajorTech's published warranty policy provides two years against defects in materials or workmanship for its test instruments, subject to product registration. Coverage for this battery-powered cutting tool should be confirmed with MajorTech or the authorised distributor.
Available Now
Available through MajorTech and authorised Australian electrical-tool distributors; confirm current stock and lead time with the distributor.
