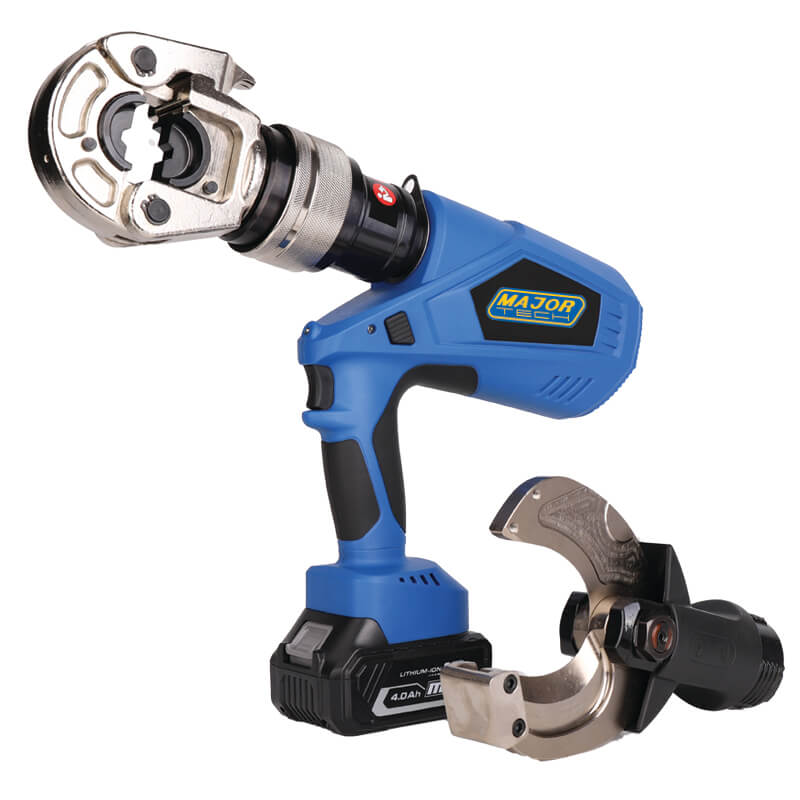

Battery Powered Crimp and Cutting Tool MajorTech
MajorTech battery powered tool features crimping and cutting action with motorised drive. Ideal for cable lug crimping and cutting on site.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Battery-Powered Hydraulic Crimper, Cordless Cable Crimper and Cutter, Battery Cable Lug Crimping Tool
Technical Specifications
- Model: ECCT450
- Tool Type: Combined battery-powered hydraulic crimper and cable cutter
- Rated Pressure: 120 kN
- Stroke: 23 mm
- Crimping Range: Copper 16–400 mm²; aluminium up to 300 mm²
- Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400 mm²
- Cutting Capacity: Up to 65 mm diameter Cu/Al cable; up to 50 mm diameter armoured cable
- Battery: 18 V lithium-ion, 4.0 Ah
- Charger: 100–240 V AC, 50/60 Hz
- Crimping Head: 350° rotation with interchangeable crimping and cutting heads
- Control Features: OLED display, electronic crimp monitoring, maintenance reminder and fault-code display
- Hydraulic Features: Two-stage hydraulic system with automatic retraction after crimp completion
- Kit Contents: Crimping and cutting tool, interchangeable heads, crimping dies, two batteries, charger, carrying case and strap
- Dimensions (H x L x W): 120mm x 470mm x 350mm
- Weight: 7.5 kg
Key Features
- Combines cable lug crimping and cable cutting in one cordless tool
- Suitable for large copper and aluminium conductors
- Quick-change interchangeable crimping and cutting heads
- 350° rotating crimping head for access in confined spaces
- Two-stage hydraulic drive provides fast feed and controlled power
- Automatic retraction after the crimp cycle is completed
- Quick motor-stop function supports operator safety
- OLED display provides operating and maintenance information
- Supplied with two 4.0 Ah batteries, charger, dies and carry case
Professional Installation Requirements
- The tool does not require professional installation, but cable crimping and cutting should be performed by suitably trained electrical or communications trade personnel using the correct dies and following applicable wiring, termination and workplace-safety requirements.
Applications
- Crimping copper and aluminium cable lugs
- Cutting copper and aluminium power cables
- Cutting armoured cable up to the stated capacity
- Electrical switchboard and distribution-board installation
- Industrial electrical maintenance and cable termination
- Battery, solar, telecommunications and infrastructure cable work
Standards & Compliance
- Applicable reference: AS/NZS 62841.1:2015 for safety requirements covering rechargeable battery-powered motor-operated hand-held tools; product-specific conformity was not stated by the manufacturer. ([store.accuristech.com](https://store.accuristech.com/products/preview/2060955?utm_source=openai))
Environmental Benefits
- Rechargeable lithium-ion batteries reduce reliance on disposable primary batteries during repeated site work
- Interchangeable heads and dies can extend the useful service life of the tool and reduce replacement waste
- Durable hydraulic construction may reduce the frequency of complete tool replacement
- Lithium-ion batteries should be recycled through an approved battery-recycling service at end of life
Warranty Information
Major Tech lists tools under a 2-year warranty period. Coverage is subject to the manufacturer’s warranty and returns policy, proof of purchase and product registration requirements; exclusions include misuse, normal wear, leaking batteries, unauthorised alterations and inadequate maintenance. ([majortech.com.au](https://www.majortech.com.au/shipping-returns?utm_source=openai))
Available Now
Available through MajorTech and authorised Australian distributors; confirm current stock and lead time before ordering. ([majortech.com.au](https://www.majortech.com.au/product/battery-powered-crimper-cable-cutter))
