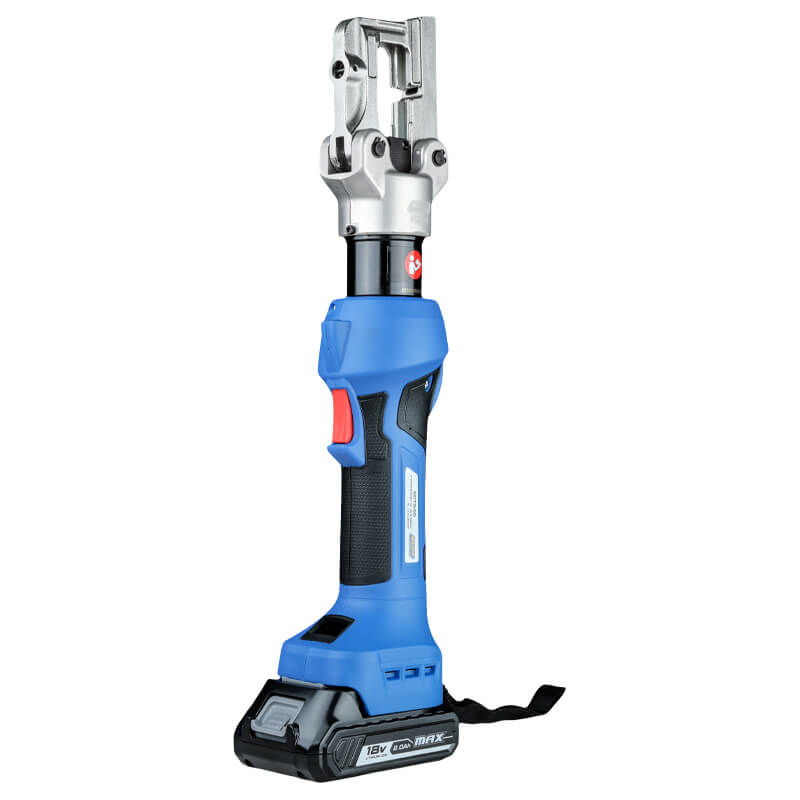

Battery Powered Crimper 16-240mm MajorTech
MajorTech battery powered crimper features 16-240mm capacity and motorised drive for high-force crimps. Ideal for terminating large cable lugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Battery Hydraulic Cable Crimper, Electric Cable Lug Crimper, 16–240mm² Battery Crimper
Technical Specifications
- Model: ECT240
- Crimping Capacity: Copper 16–240mm²; aluminium up to 185mm²
- Rated Pressure: 50kN
- Crimping Force: Approximately 6 tonnes
- Stroke: 14mm
- Cycle Time: 2.5–4 seconds
- Hydraulic System: Two-stage hydraulic drive
- Display: OLED display for pressing time, battery percentage, maintenance alerts and fault codes
- Battery: 2 x 2.5Ah lithium-ion batteries
- Included Accessories: Crimping dies, charger and carrying case
- Dimensions (H x L x W): 80mm x 440mm x 120mm
- Weight: 2.8 kg
Key Features
- Motorised hydraulic drive for high-force cable lug crimping
- Suitable for copper cable sizes from 16–240mm²
- Aluminium crimping capacity up to 185mm²
- Two-stage hydraulic system for rapid feed and controlled pressing force
- OLED display provides operating and maintenance information
- Compact in-line grip for overhead work and confined spaces
- Supplied with two batteries, charger, dies and carry case
Professional Installation Requirements
- The tool does not require fixed installation, but cable lug termination and electrical connections should be completed by a suitably qualified electrician in accordance with applicable Australian electrical installation requirements and the cable-lug manufacturer's instructions.
Applications
- Crimping copper cable lugs and terminals
- Crimping aluminium cable lugs up to 185mm²
- Electrical switchboard and distribution-board assembly
- Battery, solar and renewable-energy cable installations
- Industrial, commercial and infrastructure electrical maintenance
Standards & Compliance
- AS/NZS 62841.1:2015 is the relevant general safety standard framework for rechargeable battery-powered motor-operated hand-held tools; product-specific compliance was not stated in the available MajorTech documentation.
Environmental Benefits
- Rechargeable lithium-ion batteries reduce reliance on disposable batteries during repeated use
- Battery operation eliminates the need for mains power at the work location
- Durable hydraulic construction and serviceable design can extend working life and reduce replacement waste
- Supports reliable low-resistance cable connections, helping minimise energy losses caused by poor terminations
Warranty Information
MajorTech Australia lists tools under a 2-year extended product warranty, subject to the published warranty conditions, proof of purchase and exclusions for misuse, normal wear, unauthorised alterations and inadequate maintenance.
Available Now
Available through MajorTech and authorised Australian electrical and trade-equipment distributors.
