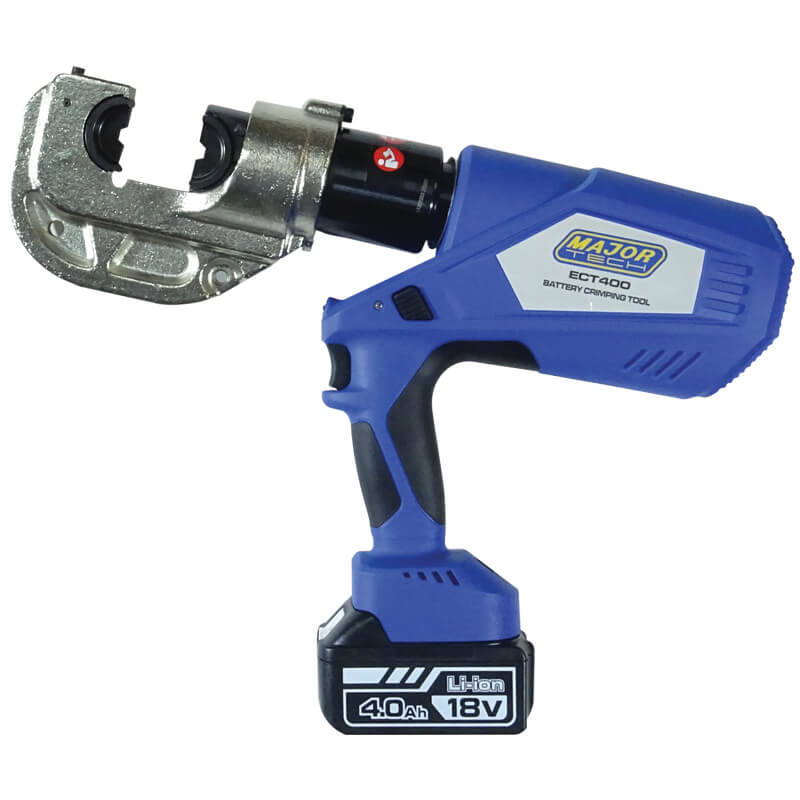

Battery Powered Crimper 16-400mm MajorTech
MajorTech battery powered crimper features 16-400mm capacity and motorised drive for high-force crimps. Ideal for terminating large cable lugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cordless Hydraulic Cable Crimper, Battery Powered Cable Lug Crimper, Electric Hydraulic Crimping Tool
Technical Specifications
- Model: ECT400
- Crimping Capacity: Copper 16–400mm²; aluminium 16–300mm²
- Rated Crimping Force: 120kN
- Crimping Head Rotation: 350°
- Hydraulic System: Two-stage hydraulic drive
- Stroke: 42mm
- Oil Capacity: 160ml
- Cycle Time: 5–8 seconds
- Battery: 18V lithium-ion, 4.2Ah
- Charger Input: 100–240V AC, 50/60Hz
- Included Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400mm²
- Display: OLED display for crimping time, battery quantity, maintenance reminders and fault codes
- Included Accessories: Battery, charger, carrying case and crimping dies
- Dimensions (H x L x W): 120mm x 420mm x 330mm
- Weight: 6.5 kg
Key Features
- High-force hydraulic crimping for large cable lugs and electrical connectors
- Suitable for copper conductors up to 400mm² and aluminium conductors up to 300mm²
- Rotating 350° crimping head for improved access in confined work areas
- Automatic retraction after the crimp is completed
- Quick motor-stop function for operator safety
- Electronic monitoring of the crimping operation
- Two-stage hydraulic system for rapid feed and controlled crimping force
- OLED display provides operating and maintenance information
- Ergonomic design with an optimised centre of gravity
Professional Installation Requirements
- The tool itself does not require permanent installation. Crimping electrical conductors and terminating large cable lugs should be performed by a suitably qualified electrician in accordance with the electrical installation requirements applicable to the work.
Applications
- Terminating large copper and aluminium power cables
- Crimping cable lugs and electrical connectors
- Switchboard and distribution-board wiring
- Industrial electrical installation and maintenance
- Battery, inverter and renewable-energy cable connections
- Commercial and infrastructure cable termination
Environmental Benefits
- Rechargeable lithium-ion battery power reduces reliance on disposable batteries during repeated field use
- Hydraulic construction and replaceable crimping dies can support extended service life and reduce tool replacement waste
- Suitable for terminating cables in energy, battery-storage and renewable-energy installations
Warranty Information
2-year warranty for MajorTech tools, subject to the manufacturer’s warranty terms, proof of purchase and exclusions for misuse, neglect, unauthorised modification, normal wear and leaking batteries.
Available Now
Available through MajorTech and authorised Australian distributors, subject to distributor stock availability.
