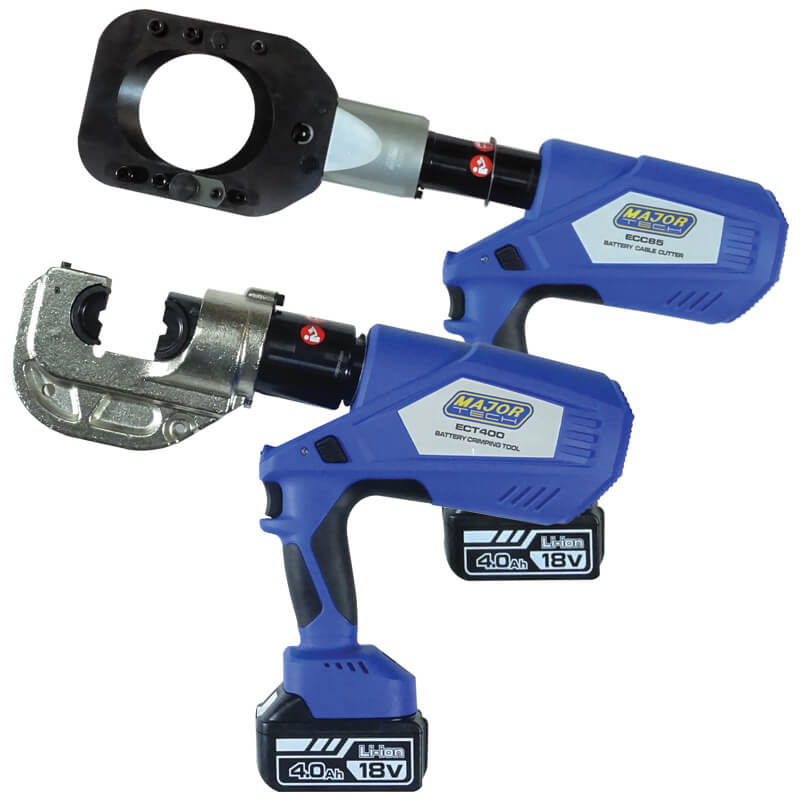

Battery Powered Crimper and Cutter Combo MajorTech
MajorTech battery powered combo features crimping and cutting heads with motorised drive. Ideal for cable lug crimping and cutting on site.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Battery Powered Crimper and Cable Cutter Combo, Battery Hydraulic Crimping and Cutting Kit, MajorTech ECCOMBO
Technical Specifications
- Kit Configuration: ECT400 battery-powered crimping tool and ECC85 battery-powered cable cutting tool
- Crimping Range: Copper up to 400mm²; aluminium up to 300mm²
- Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400mm²
- Crimping Pressure: 120kN
- Crimping Stroke: 42mm
- Cable Cutting Range: Up to Ø85mm
- Cutting Force: 60kN
- Cable Types: Copper, aluminium, armoured copper/aluminium cable and ACSR
- Battery: 18V lithium-ion, 4.0Ah
- Charger: AC 100–240V, 50/60Hz
- Included Batteries: 4
- Included Chargers: 2
- Carrying Cases: 2
- Dimensions (H x L x W): 250mm x 500mm x 400mm
- Weight: 17 kg
Key Features
- Combined crimping and cable cutting kit for site work
- Separate interchangeable crimping and cutting tools supplied
- Two-stage hydraulic systems for rapid feed and controlled power
- OLED displays on the tool platforms for operating and maintenance information
- Automatic hydraulic retraction after crimping
- Motor stop function for improved operator safety
- Includes a comprehensive range of crimping dies from 16mm² to 400mm²
- Supplied with four lithium-ion batteries, two chargers and two carrying cases
Professional Installation Requirements
- No installation is required for the tool. Cable lug crimping and cable cutting should be performed by suitably trained electrical or communications personnel in accordance with the relevant installation requirements and safe work procedures.
Applications
- Crimping copper and aluminium cable lugs
- Cutting large copper and aluminium cables on site
- Electrical switchboard, distribution and industrial cable installation
- Power, utilities, solar and battery-system cable work
- Telecommunications and infrastructure cabling
- Maintenance and repair work requiring portable hydraulic crimping or cutting
Standards & Compliance
- AS/NZS 62841.1:2015 is the relevant general safety standard for rechargeable battery-powered motor-operated hand tools; MajorTech does not state specific ECCOMBO compliance on the product page.
Environmental Benefits
- Rechargeable lithium-ion batteries reduce reliance on disposable batteries during repeated site use
- Durable hydraulic construction and interchangeable heads can extend service life and reduce tool replacement waste
- Lithium-ion batteries and electronic components should be recycled through an approved battery or e-waste recycling service at end of life
Warranty Information
MajorTech lists a 2-year warranty for tools, subject to its Australian Returns and Warranty Policy, proof of purchase and exclusions for misuse, normal wear, unauthorised alterations, leaking batteries and inadequate maintenance.
Available Now
Available through MajorTech and authorised Australian distributors; distributor quotation may be required.
