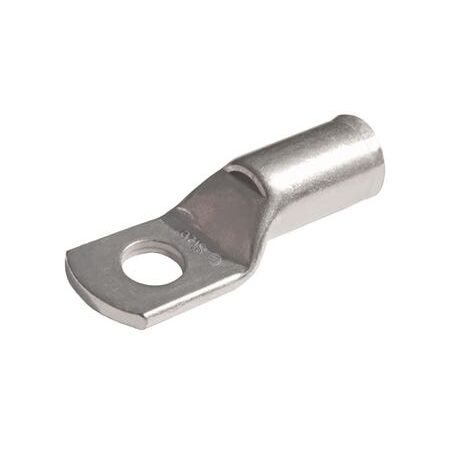

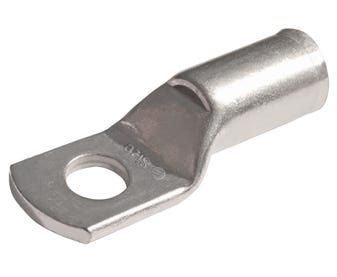

Bellmouth Copper Lug 150mm² | 16mm Stud | High Conductivity & Corrosion Resistance by Cabac
The Cabac Bellmouth Copper Lug 150mm2 Cable 16mm Stud is designed for fine stranded flexible cables, providing easy conductor insertion and high conductivity with annealed copper and tin electroplating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 150mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL150-16BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Stranded Cable Lug, Electrical Copper Lug, Crimp Copper Lug
Technical Specifications
- Nominal Conductor Size: 150mm²
- ID Size: 16.7mm
- Stud Size: 16mm
- Conductive Material: Copper 99.95% pure, oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Electroplated with 99.9% pure tin for corrosion resistance
- Tooling interchangeable with CABAC, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty information available upon request from Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 150mm2 Cable 16mm Stud is available for immediate purchase, ideal for electrical power connectivity applications involving fine stranded cables.
