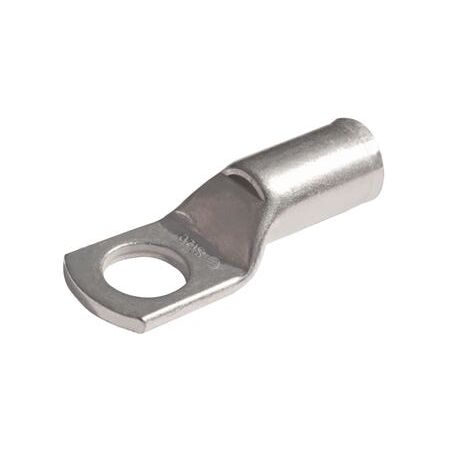

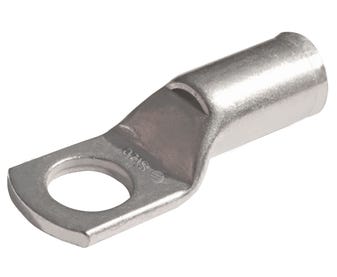

Bellmouth Copper Lug 240mm2 | High Conductivity | Easy Insertion | 16mm Stud by Cabac
The Bellmouth Copper Lug 240mm2 Cable 16mm Stud by Cabac is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 240mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL240-16BM
Alternatively Known As: Copper Bell Mouth Lug, Fine Stranded Cable Lug, Copper Cable Lug 240mm2, Electrical Cable Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 p.p.m max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling compatible with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Tooling interchangeable between CABAC, Utilux, and Burndy
Professional Installation Requirements
- Professional installation recommended using appropriate crimping tools and methods for fine stranded cables as per CABAC guidelines.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, improving longevity
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Bellmouth Copper Lug 240mm2 Cable 16mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
