BF Multi Frame 1mt x 1.2mt Cross Bars | 305mm Adjustable Feet | Compatible with Multi Frame Systems | by Aspen Pumps

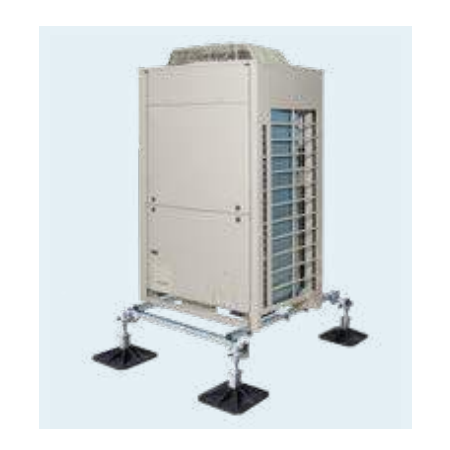

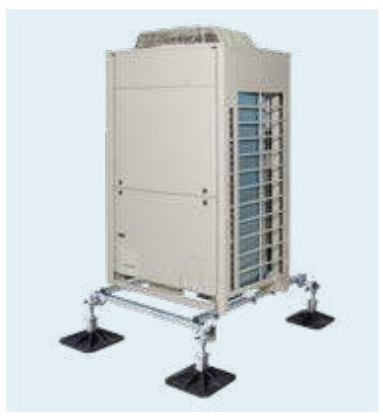

The BF Multi Frame 1mt x 1.2mt Cross Bars provide robust support for air conditioning units, featuring 305mm adjustable feet for enhanced stability. Ideal for both residential and commercial HVAC installations, this frame is designed for easy assembly and flexible configurations, ensuring secure support for your A/C needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Multi Frame 1mt x 1.2mt Cross Bars | 305mm Adjustable Feet | Compatible with Multi Frame Systems | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9720
Alternatively Known As: A/C Support Frame, Multi Frame Cross Bars, HVAC Support Frame, Adjustable Air Conditioner Frame
Technical Specifications
- Length: 1000 mm
- Width: 1200 mm
- Height: Adjustable from 335 mm to 440 mm
- Weight: 36 kg
- Maximum Load Capacity: 500 kg
- 305mm adjustable feet
- Compatible with Multi Frame and Multi Frame XL systems
- Dimensions (H x L x W): 335mm x 1000mm x 1200mm
- Weight: 36 kg
Key Features
- 305mm adjustable feet for stability
- Compatible with Multi Frame and Multi Frame XL of the same height

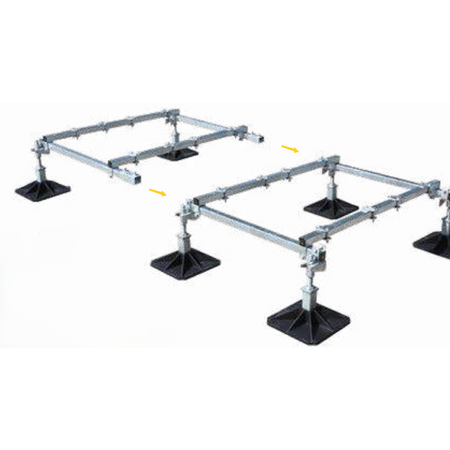

- Extendable from any side for flexible configuration
- Adjustable leg assemblies for height customization
- Easy assembly with cross bars positioning onto end bars
- Supplied with clamp kits for secure installation
Professional Installation Requirements
- Professional installation is recommended to ensure proper assembly and secure support for air conditioning units.
Applications
- Supports air conditioning units
- Suitable for various HVAC installations requiring adjustable framing
- Ideal for both residential and commercial A/C support needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces the need for frequent replacements
- Supports efficient HVAC installations which can improve energy efficiency
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps BF Multi Frame 1mt x 1.2mt Cross Bars is available for immediate purchase, ideal for flexible and robust air conditioning support applications.
