Trade Discount 17%
BF Std Frame 1mt x 1.5mt Cross Bars | Adjustable Height | 400 kg Load Capacity | Heavy-Duty Metal | by Aspen Pumps

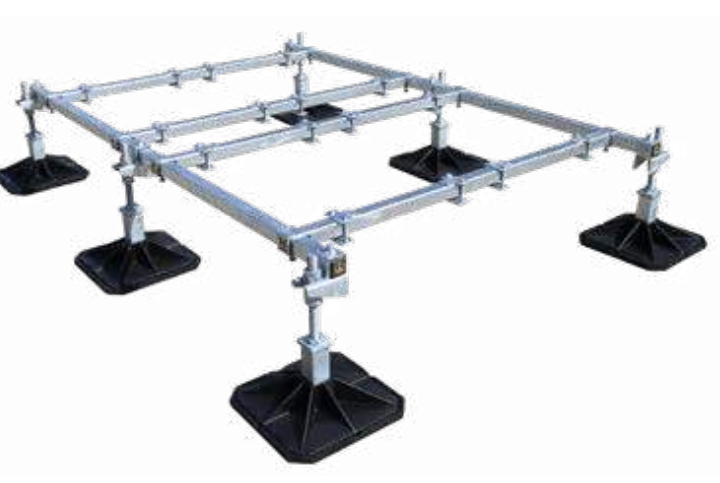

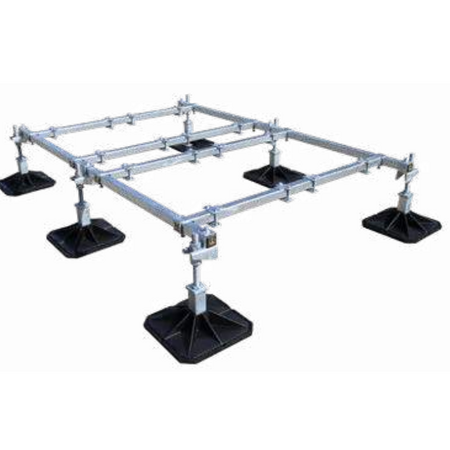

The BF Std Frame 1mt x 1.5mt cross bars are designed for secure mounting of mini splits and VRF/VRV air conditioning units. With adjustable leg assemblies and a robust construction supporting up to 400 kg, this frame is perfect for both residential and commercial HVAC installations. Easy to assemble with supplied clamp kits, it ensures compliance with safety standards while minimizing environmental impact through durable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Std Frame 1mt x 1.5mt Cross Bars | Adjustable Height | 400 kg Load Capacity | Heavy-Duty Metal | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9442
Alternatively Known As: A/C Support Frame, Air Conditioner Mounting Frame, HVAC Support Frame, Mini Split Frame
Technical Specifications
- Frame Size: 1m x 1.5m
- Height Adjustable Legs: 290mm to 400mm
- Maximum Load Capacity: 400 kg
- Cross Bar Lengths: 1.2m or 1.5m
- Material: Heavy-duty metal construction
- Assembly: Supplied with clamp kits for easy installation
- Dimensions (H x L x W): 345mm x 1000mm x 1500mm
- Weight: 42 kg
Key Features
- Adjustable leg assemblies for flexible installation heights
- Available in 3 lengths to suit different unit sizes
- Cross bars available in 1.2m or 1.5m lengths
- Simple to assemble with supplied clamp kits
- Robust construction supporting up to 400 kg load
Professional Installation Requirements
- Professional installation by qualified HVAC technicians or tradespeople is recommended to ensure secure mounting and compliance with safety standards.
Applications

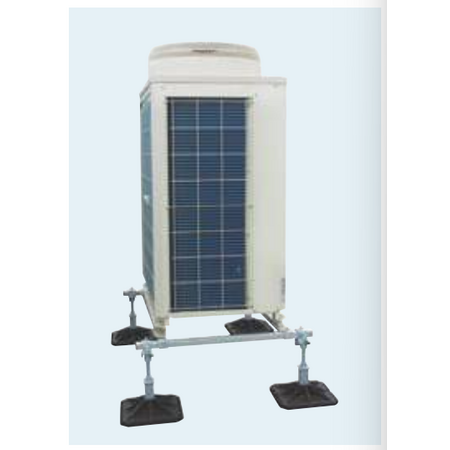

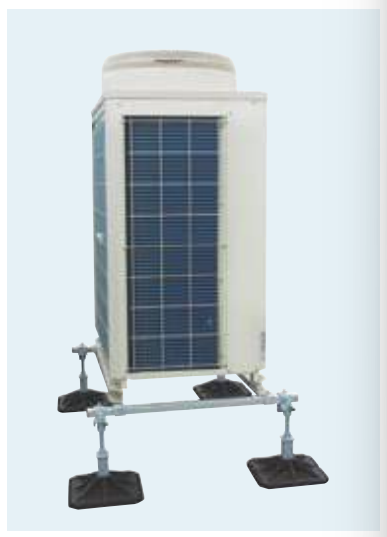

- Supports mini splits, VRF/VRV air conditioning units
- Suitable for residential and commercial HVAC installations
- Ideal for mounting air conditioning units securely
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Supports efficient HVAC system installation contributing to energy savings
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps BF Std Frame 1m x 1.5m cross bars standard frame is available for immediate purchase, ideal for HVAC professionals and contractors requiring reliable A/C support solutions.
