Bi-Metal Link 240mm Aluminium to 50mm Copper | Friction Welded | Strong Electrical Joint | Individually Packed by Cabac

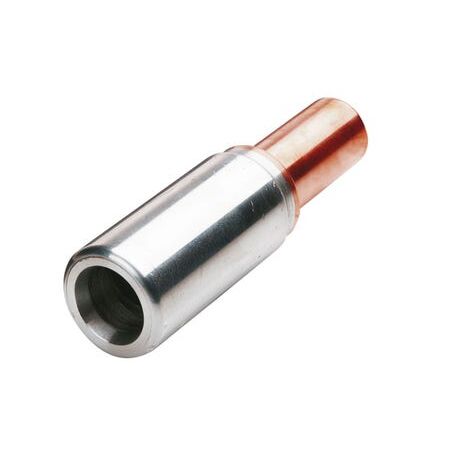

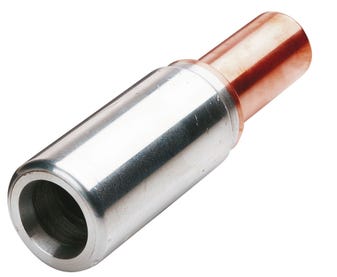

Cabac Bi-Metal Link 240mm Aluminium to 50mm Copper is a high-quality friction welded crimp link designed for connecting stranded aluminium to stranded copper cables, ensuring strong and reliable electrical joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Link 240Al To 50Copper
Brand: Cabac
SKU: BLK240/50
Alternatively Known As: Bi-metal crimp link, Aluminium to copper cable link, Electrical crimp connector, Bi-metal cable lug
Technical Specifications
- Material: 99.6% pure aluminium and 99.9% pure copper
- Length: 240mm
- Width: 50mm
- Suitable for stranded sector and circular stranded aluminium to stranded copper cable
- Barrels coated with jointing compound
- Individually packed in plastic bags
- Dimensions (H x L x W): 10mm x 240mm x 50mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Will not be subject to electrolysis
- Designed to be crimped with CABAC and MSS Power tool dies
- Compatible with standard hex dies
- Barrels coated with jointing compound
- Individually packed in plastic bags
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium to stranded copper cable connections
- Suitable for use in electrical installations requiring bi-metal crimp links
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Friction welding process reduces the need for additional materials and energy consumption
- Durable construction extends product life, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Link 240mm Aluminium to 50mm Copper is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper cable connections.
