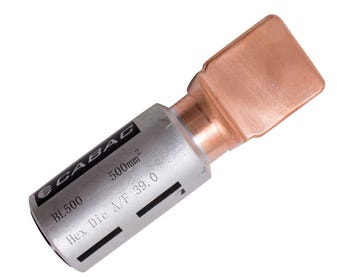

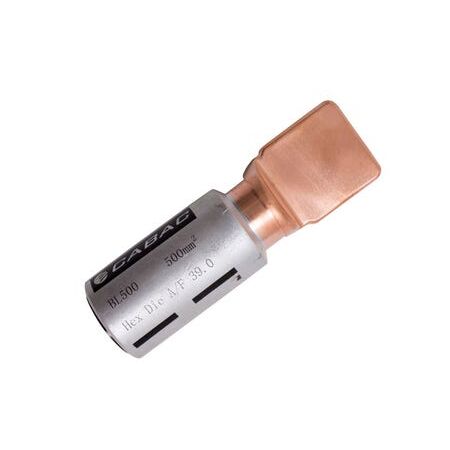

Product Name/Title: Bi-Metal Lug 500mm2-Blank
Brand: Cabac
SKU: BL500
Alternatively Known As: Bi-Metal Aluminium Copper Lug, Aluminium Copper Crimp Lug, Bi-Metallic Cable Lug, Friction Welded Bi-Metal Lug
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Recommended Torque (Nm) by Thread Diameter (mm): 5/56, 6/98, 8/22, 10/44, 12/77, 16/190
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
- Barrel chemically treated to reduce contact resistance and corrosion
- Jointing compound breaks oxide layers on aluminium for better conductivity
- Designed to be crimped using standard Australian tooling with aluminium hexagonal dies
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian tooling and crimping dies to ensure proper electrical and mechanical connection.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for crimping to copper terminals or busbars in electrical installations
- Used in industrial, commercial, and residential electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
- Efficient electrical conductivity reduces energy loss in power transmission
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Bi-Metal Lug 500mm2-Blank is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
