Bi-Metal Lug 630mm2 | Friction Welded | Corrosion Resistant | Aluminium & Copper by Cabac

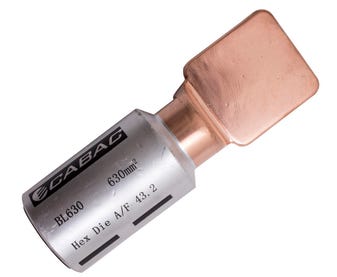

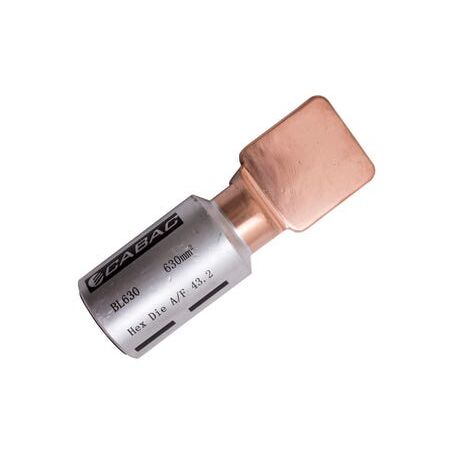

The Cabac Bi-Metal Lug 630mm2 is designed for stranded sector and circular stranded aluminium conductors, featuring a friction welded aluminium and copper joint for strong, corrosion-resistant electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 630mm2-Blank
Brand: Cabac
SKU: BL630
Alternatively Known As: Bi-Metal Electrical Lug, Aluminium Copper Lug, Friction Welded Lug, Electrical Cable Lug
Technical Specifications
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Operating Temperature Range: -40°C to 100°C
- Tooling: Interchangeable with CABAC, Utilux, and Burndy standard aluminium hexagonal dies
- Recommended Torque (Nm) by Thread Diameter (mm): 5/5, 6/9, 8/22, 10/44, 12/77, 16/190
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
- Barrel chemically treated to reduce contact resistance and corrosion
- Tooling interchangeable between CABAC, Utilux and Burndy
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian tooling and following recommended torque specifications for safety and performance.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Suitable for use with aluminium conductors and copper terminals or busbars
- Industrial and commercial electrical installations requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Bi-Metal Lug 630mm2 is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
