Trade Discount 25%

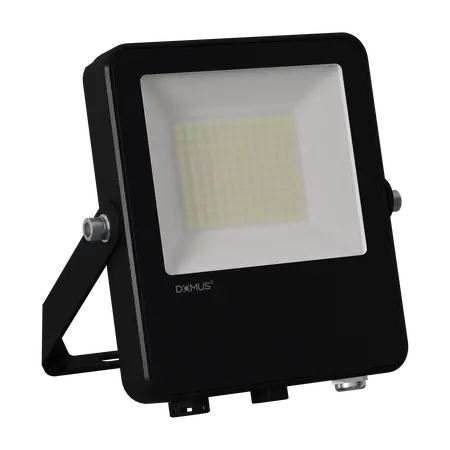

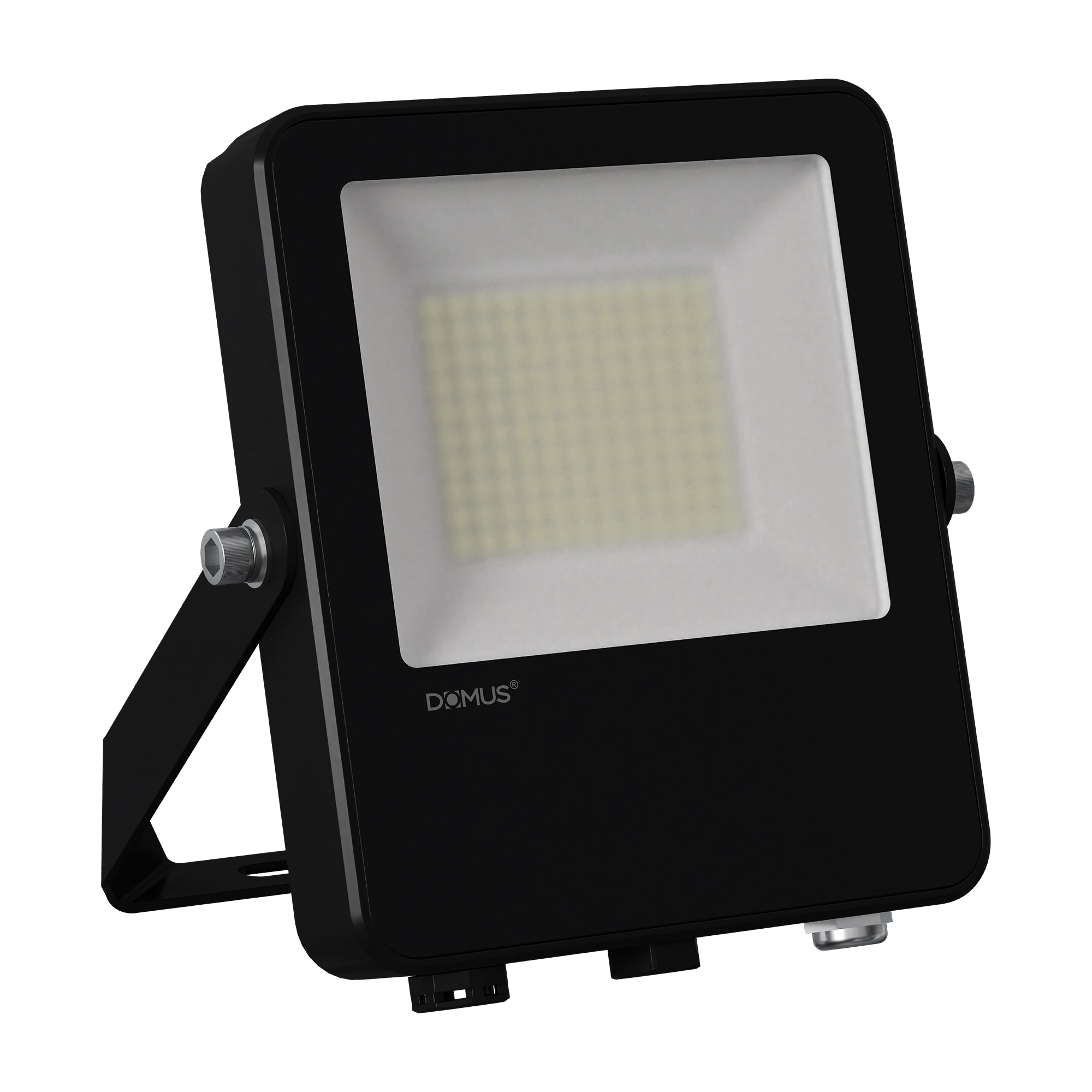

Blaze-Pro LED Floodlight 20/30/50W Fly Lead & Plug Black Domus
Domus Blaze-Pro LED box floodlight, 20/30/50W selectable, fly lead and plug, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Blaze-Pro LED Floodlight, Domus Black LED Floodlight, Selectable Wattage Outdoor Floodlight, BLAZE-PRO-BK/BK-50
Technical Specifications
- Input Voltage: 240V AC
- Selectable Power: 20W, 30W or 50W
- Lumen Output: 1,844–4,783lm depending on wattage and CCT
- Colour Temperature: 3000K, 4000K or 5500K selectable
- LED Type: SMD
- Luminous Efficacy: Up to 110lm/W
- Colour Rendering Index: CRI ≥70
- Beam Angle: 120°
- Ingress Protection: IP66
- Dimmable: No
- Lifespan: 20,000 hours
- Power Factor: ≥0.9
- Driver: Driver on board
- Operating Temperature: -40°C to +45°C
- Surge Protection: 4.5kV
- Cable: 1.5m flex with plug
- Construction: Aluminium fascia with frosted glass lens
- Sensor Interface: Built-in adaptor interface for optional sensor
- Dimensions (H x L x W): 49.5mm x 180.1mm x 152.2mm
- Weight: 0.72 kg
Key Features
- Selectable 20W, 30W and 50W power settings
- Selectable 3000K warm white, 4000K neutral white and 5500K white colour temperatures
- IP66-rated construction for outdoor applications
- Anti-condensation breathing valve to reduce moisture build-up behind the lens
- Frosted glass lens designed to soften glare
- 120° wide beam angle
- Adjustable mounting bracket for flexible installation angles
- Supplied with 1.5m flex and plug
- Compatible with optional plug-and-play sensor accessories
- Black reflector and fascia finish
Professional Installation Requirements
- Installation must be carried out by a licensed electrician. Isolate the power supply before installation and follow the manufacturer's installation instructions for the 240V fitting.
Applications
- Residential outdoor lighting
- Backyard and garden lighting
- BBQ and outdoor entertaining areas
- Entryways, paths and driveways
- Garages, sheds and utility areas
- General commercial exterior lighting
Standards & Compliance
- Applicable luminaire standard: AS/NZS 60598.2.5 for floodlights, used with the general requirements of AS/NZS 60598.1. Manufacturer-specific certification or declaration was not located in the reviewed product documentation.
Environmental Benefits
- LED technology provides efficient illumination compared with conventional floodlighting technologies
- Selectable wattage allows light output and energy use to be matched to the application
- Selectable colour temperature can help avoid over-lighting and unnecessary replacement of fittings
- 20,000-hour rated lifespan can reduce replacement frequency and material waste
- Aluminium and glass components are recyclable through suitable material recovery channels
Warranty Information
3-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions and licensed-electrician installation.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
