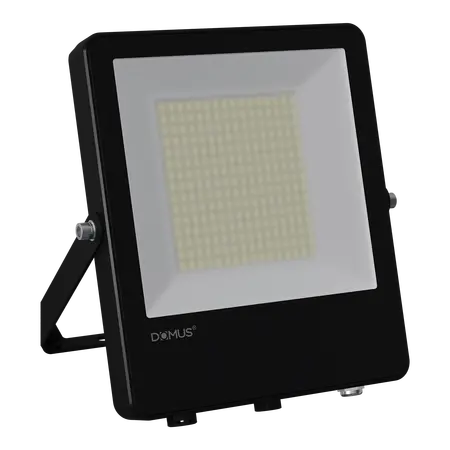

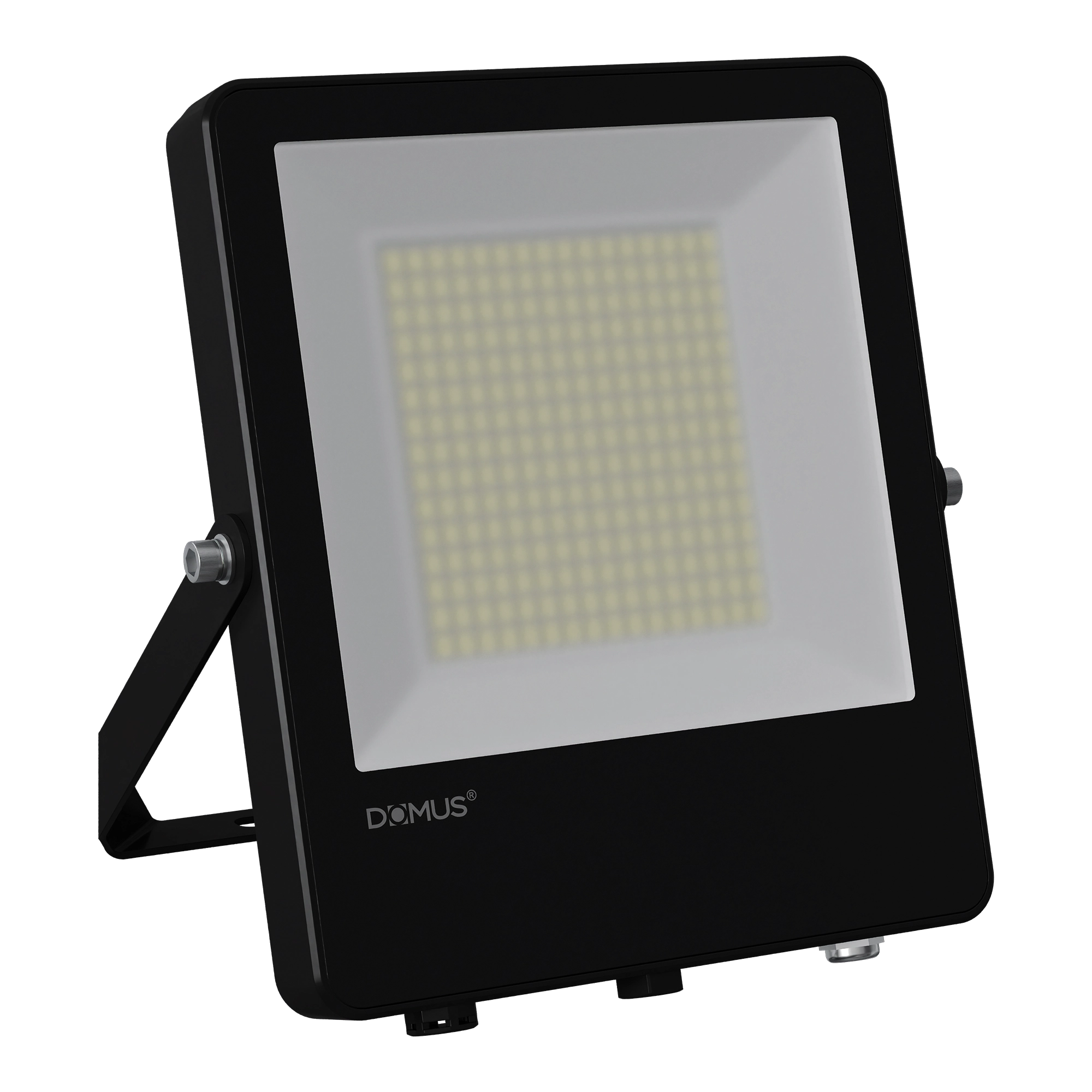

Blaze-Pro LED Floodlight 50/70/100W Fly Lead & Plug Black Domus
Domus Blaze-Pro LED box floodlight, 50/70/100W selectable, fly lead and plug, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Blaze-Pro 100W LED Floodlight, Blaze-Pro-BK/BK-100, Selectable Wattage LED Floodlight
Technical Specifications
- Selectable Power: 50W/70W/100W
- Input Voltage: 240V AC
- Colour Temperature: 3000K/4000K/5500K selectable
- Lumen Output: 4765-9800 lm, depending on wattage and CCT
- LED Type: SMD
- Luminous Efficacy: Up to 110 lm/W
- Colour Rendering Index: ≥70
- Beam Angle: 120°
- Ingress Protection: IP66
- Dimming: No
- Lifespan: 20,000 hours
- Power Factor: ≥0.9
- Surge Protection: 4.5kV
- Operating Temperature: -40°C to +45°C
- Cable: 1.5m flex and plug
- Lens: Frosted glass with anti-condensation breathing valve
- Sensor Interface: Built-in adaptor interface for optional sensor
- Finish: Black
- Maximum Projected Area: 0.045m²
- Dimensions (H x L x W): 221.9mm x 255.1mm x 90.5mm
- Weight: 1.28 kg
Key Features
- Selectable 50W, 70W and 100W output from one fitting
- Selectable 3000K warm white, 4000K neutral white and 5500K white colour temperatures
- IP66-rated housing for outdoor applications
- Black reflector and aluminium fascia design
- Frosted glass lens helps reduce glare
- Anti-condensation breathing valve helps limit moisture build-up behind the lens
- Adjustable mounting bracket for directional installation
- Compatible with optional plug-and-play sensor accessories
- Supplied with 1.5m flex and plug
Professional Installation Requirements
- Installation must be carried out by a licensed or suitably qualified electrician. Isolate the power supply before installation and do not adjust the wattage or CCT selector while energised.
Applications
- Outdoor entertaining areas
- BBQ areas and backyard lighting
- Residential exterior lighting
- Commercial outdoor area lighting
- Security and general floodlighting
Standards & Compliance
- AS/NZS 60598.1:2017 - applicable general requirements and tests for luminaires
- AS/NZS 60598.2.5:2018 - applicable particular requirements for floodlights
Environmental Benefits
- LED technology provides lower energy consumption than conventional floodlighting technologies
- Selectable wattage allows light output and energy use to be matched to the application
- Selectable colour temperature and 20,000-hour rated lifespan can reduce premature replacement and product waste
- Aluminium construction is recyclable at end of service life
Warranty Information
3-year replacement warranty for residential use. Domus Lighting's warranty statement lists a 12-month replacement warranty for commercial-use exterior LED floodlights; confirm warranty conditions at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
