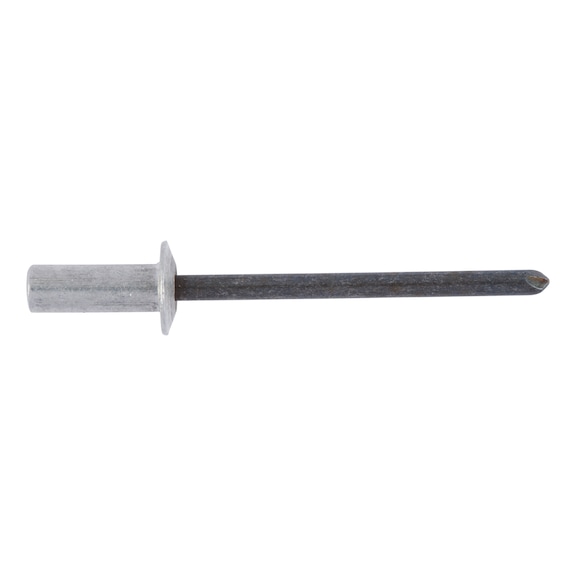

Blind Bucket Rivet Flat Head | Aluminium Sleeve | High Shear Strength | 50 PCS | by Wurth
Blind bucket rivets with an aluminium sleeve and bare steel mandrel are perfect for creating strong, permanent joints in metal, plastic, and other sheet materials. Ideal for automotive, construction, and manufacturing applications, these rivets ensure secure fastening with their captive mandrel head and thick body wall, making them a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

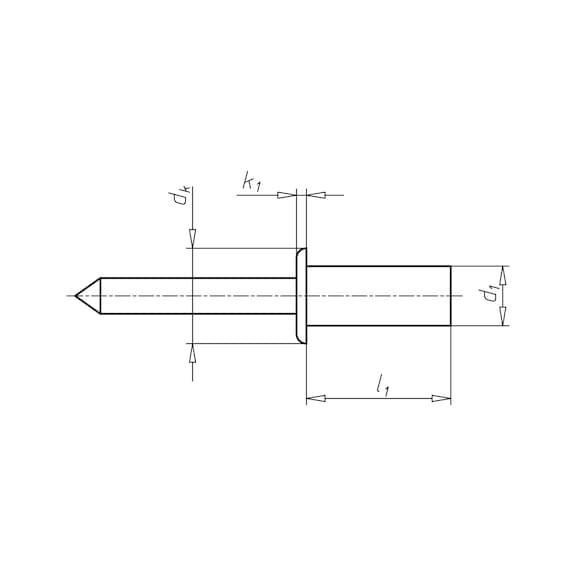

Technical Specifications
- Nominal diameter x length: 4.8 x 21 mm
- Head diameter: 10.1 mm
- Head height: 2.0 mm
- Min./max. grip range: 12.5-16.0 mm
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of sleeve and mandrel: Plain
- RoHS-compliant: Yes
- ISO: 15973
- Drill hole diameter: 4.9 mm
- Shear-fracture load: 2200 N
- Tensile fracture load: 3100 N
- Head type: Dome head
- Dimensions (H x L x W): 2mm x 21mm x 10mm
- Weight: 0.05 kg
Key Features
- Aluminium sleeve for lightweight and corrosion resistance
- Bare steel mandrel for high shear strength
- Captive riveting mandrel head ensures secure fastening
- Very thick rivet body wall for durability
- Bucket-shaped rivet shank provides air and spray water-proof riveting
Professional Installation Requirements
- Installation requires appropriate riveting tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Used for fastening materials where a strong, permanent joint is required
- Ideal for metal, plastic, and other sheet materials
- Suitable for automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Blind Bucket Rivet Flat Head 50 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
