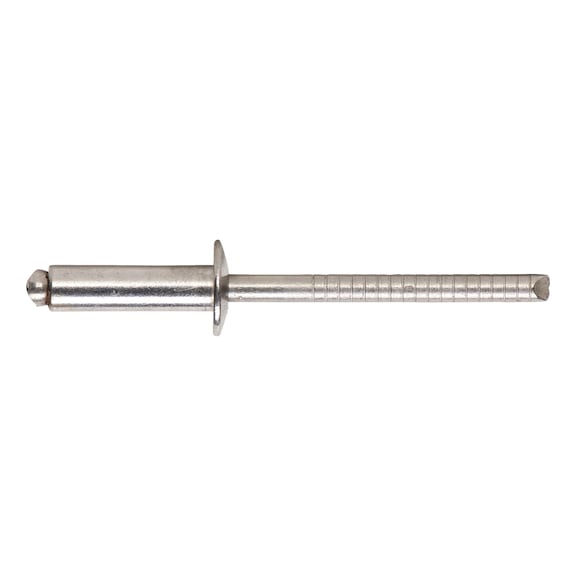

Blind Rivet Flat Head | A2 Stainless Steel | Dome Head Design | Weather Resistant | @Pack of 25 | by Wurth
Blind rivets with a dome head design made from A2 stainless steel are perfect for both indoor and outdoor fastening applications. With a grip range of 9.0-13.0 mm and a shear load of 1800 N, these rivets ensure secure and durable connections in weather-exposed environments. Ideal for general metal joining tasks, they are easy to install with the right riveting tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head | A2 Stainless Steel | Dome Head Design | Weather Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 9313216
Alternatively Known As: Flat Head Blind Rivet, Dome Head Rivet, Stainless Steel Blind Rivet

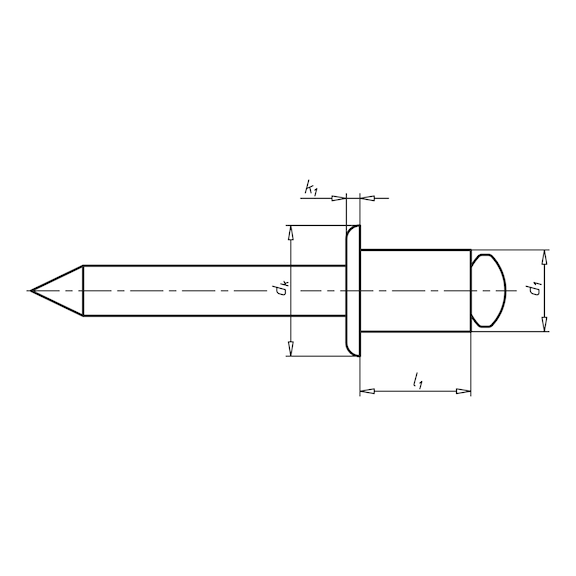

Technical Specifications
- Nominal diameter x length: 3.2 x 16 mm
- Min./max. grip range: 9.0-13.0 mm
- Head diameter: 6.5 mm
- Head height: 0.8 mm
- Min./max. drill hole diameter: 3.3-3.4 mm
- Shear-fracture load: 1800 N
- Tensile fracture load: 2500 N
- Material of sleeve: Stainless steel A2
- Material of mandrel: Stainless steel A2
- Surface of sleeve and mandrel: Plain
- Drill hole diameter: 3.3 mm
- Mandrel diameter: 1.95 mm
- RoHS-compliant: Yes
- Head type: Dome head
- Dimensions (H x L x W): 16mm x 16mm x 3.2mm
- Weight: 0.05 kg
Key Features
- Sleeve made of A2 stainless steel
- Mandrel made of A2 stainless steel
- Dome head open rivet design
- Suitable for indoor and outdoor use with weather resistance
Professional Installation Requirements
- Installation requires appropriate riveting tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Indoor and outdoor fastening applications
- Suitable for use in weather-exposed environments
- General metal joining and assembly tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and corrosion resistant, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Blind Rivet Flat Head 25 PCS is available for immediate purchase, ideal for metal fastening in both indoor and outdoor applications.
