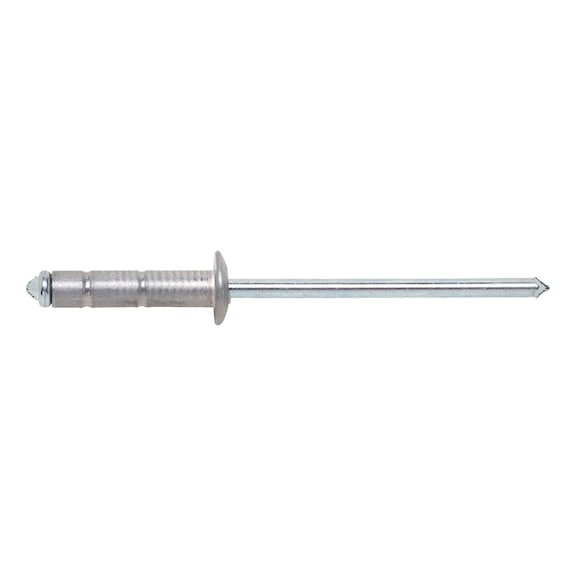

Blind Rivet Flat Head | Aluminium Steel | High Tensile Strength | Dome Head Design | @Pack of 50 | by Wurth
Blind rivet flat head designed for versatile fastening applications, featuring a durable aluminium sleeve and galvanised steel mandrel. With a grip range of 12.7-19.8 mm and a shear load of 1600 N, these rivets are perfect for sheet metal assembly, automotive, and construction projects. Their patented locking mechanism ensures a clean, secure closure, making them ideal for professional use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head | Aluminium Steel | High Tensile Strength | Dome Head Design | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 91554825
Alternatively Known As: Flat Head Blind Rivet, Aluminium Steel Blind Rivet, Multi-use Blind Rivet, Dome Head Rivet
Technical Specifications
- Nominal diameter x length: 4.8 x 25 mm
- Min./max. grip range: 12.7-19.8 mm
- Head diameter: 9.6 mm
- Head height: 1.6 mm
- Min./max. drill hole diameter: 4.9-5.1 mm
- Shear-fracture load: 1600 N
- Tensile fracture load: 2200 N
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of the sleeve: Plain
- Surface of the mandrel: Zinc plated
- Standards: WN 915
- Approval: DIBt Z-14.1-4 und Z-14.1-537
- RoHS-compliant: Yes
- Head type: Dome head
- Mandrel diameter: 2.7 mm
- Dimensions (H x L x W): 1.6mm x 25mm x 9.6mm
- Weight: 0.02 kg
Key Features
- Sleeve made of AI-Mg aluminium
- Mandrel made of galvanised steel with blue passivation (A2K)
- Multi-use blind rivet with high-quality rivet connection
- Clean, secure closing with patented rivet mandrel locking mechanism
- Consistently high tensile strength and shearing resistance
- Impact-resistant and impermeable to spray water
- Significant shank expansion for maximum borehole filling, even in over-drilled boreholes
- Large clamping length range reduces the need for multiple types
- General technical approval Z-14.4 for 4.8 mm diameter
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet tools to ensure secure fastening and compliance with safety standards.
Applications
- General fastening applications requiring blind rivets
- Sheet metal assembly
- Automotive and machinery manufacturing
- Construction and building projects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials increase product lifespan and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial, construction, and manufacturing fastening applications.
